The Smoothie Bike Project
My sister-in-law Elaine asked me to make a Smoothie Bike for the South of England Show
Joanne agreed on my behalf, so Elaine sent me some pictures of what a Smoothie Bike is. For the uninitiated, it's a bike with a blender. There are tons about, just google!
Having looked at the pictures and done some more research, I decided that I could do better than that myself!!.
This Youtube video is of the end result....

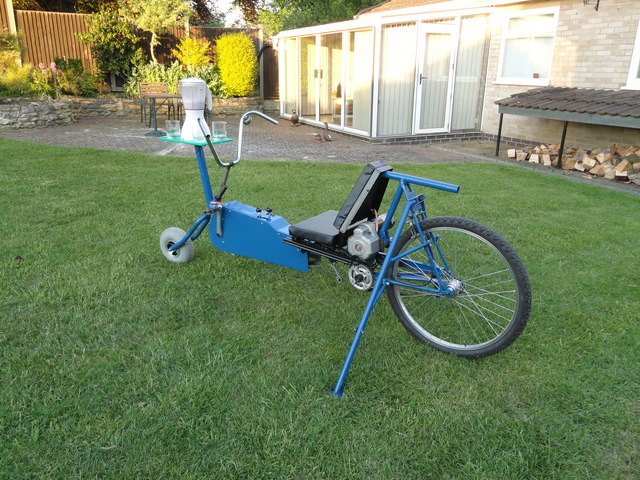

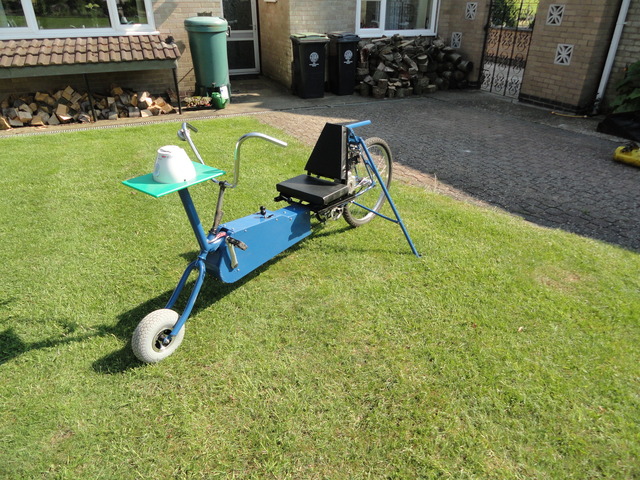

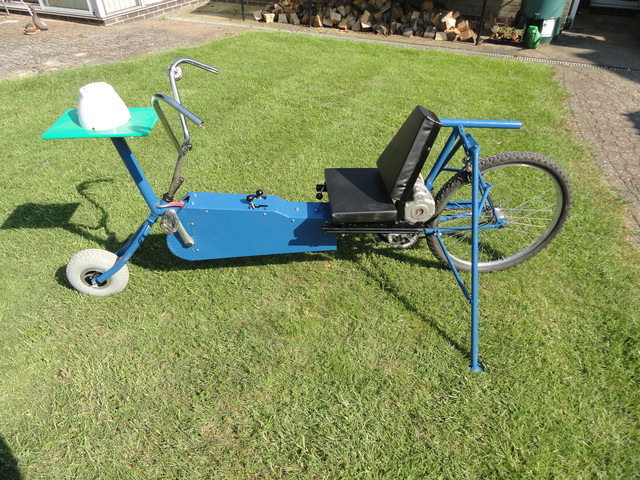

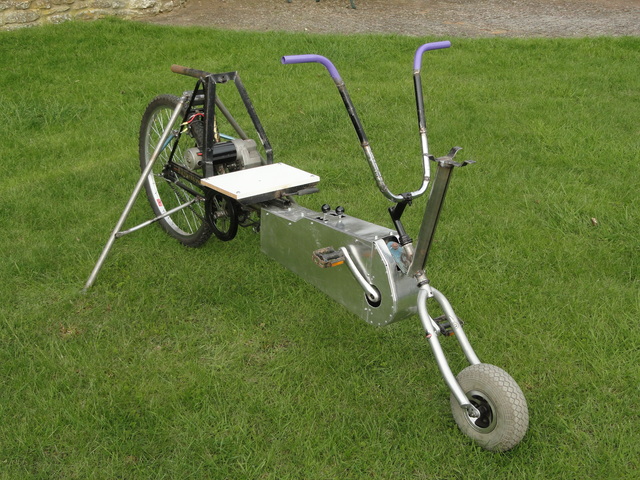

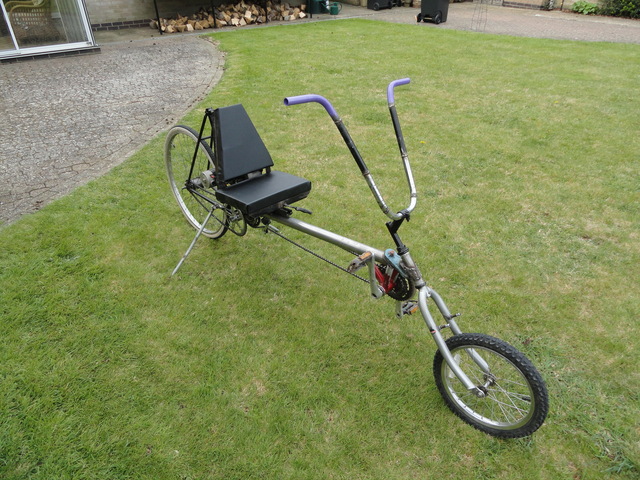

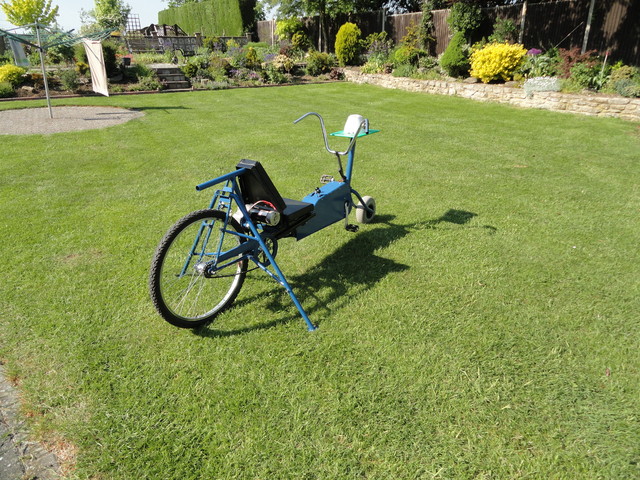

And here is a picture
 |
Here follows some photos of the build process

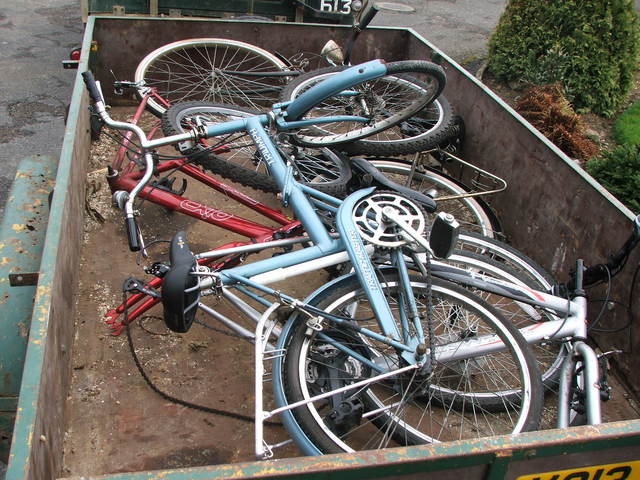

Start with some bikes:
 |

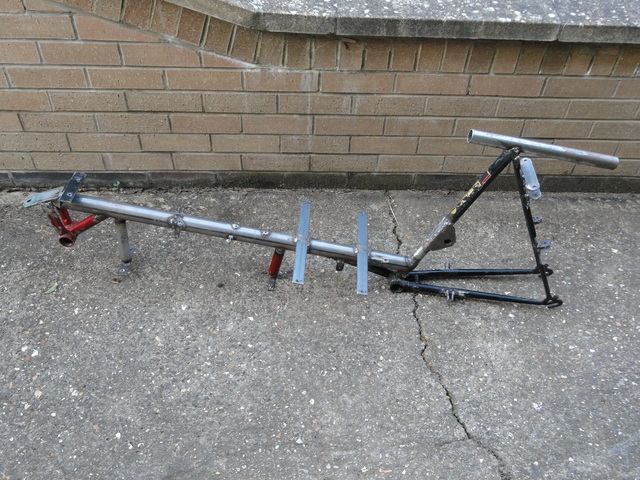

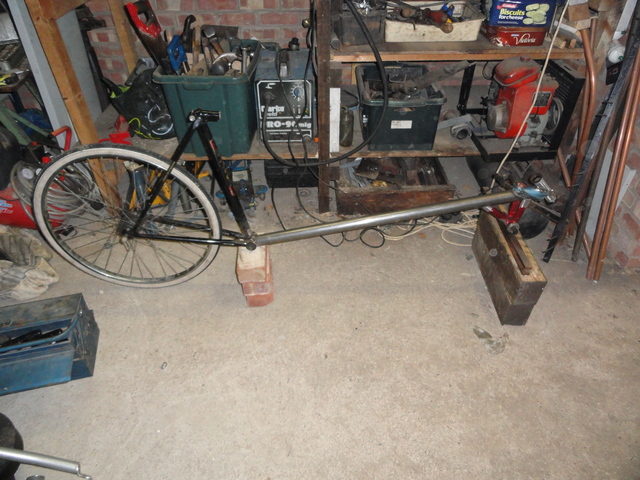

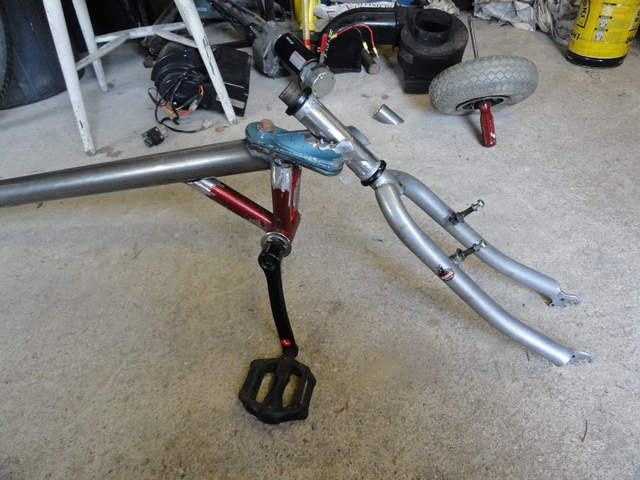

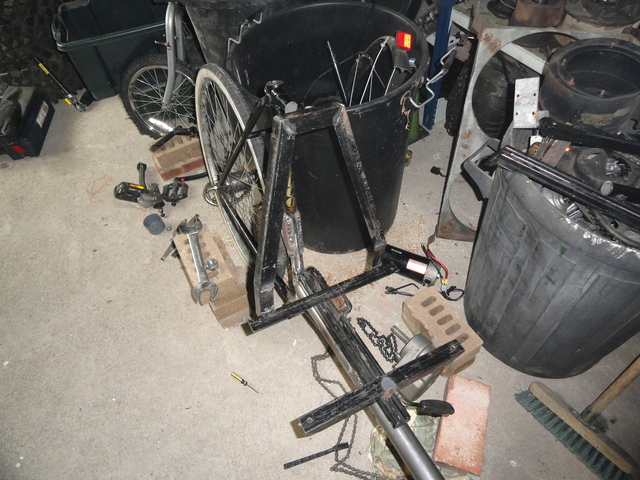

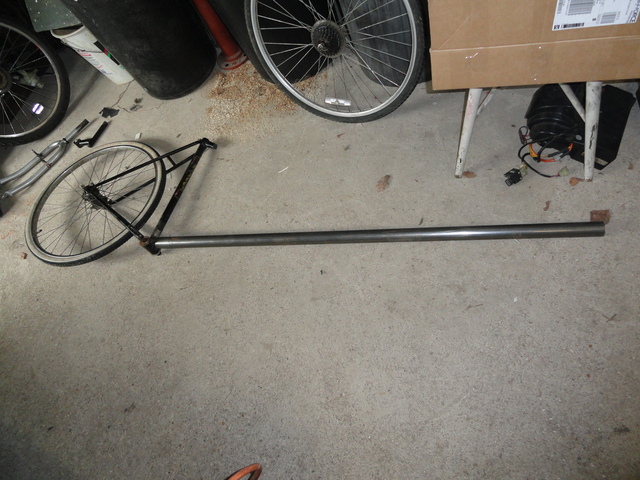

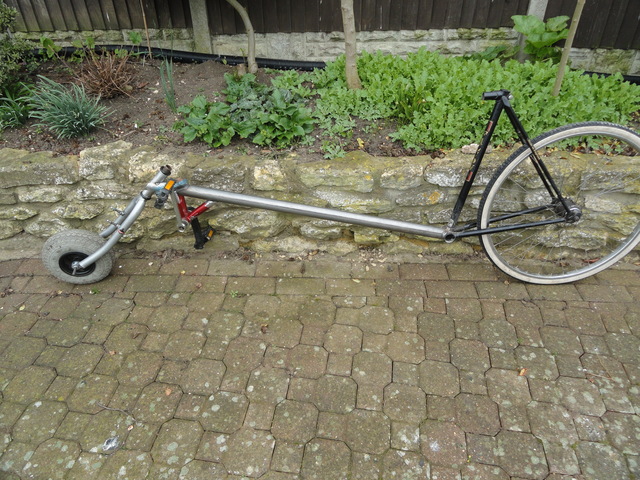

Do some cutting & shutting with bikes and some exhaust tubing:
 |
 |
 |
 |

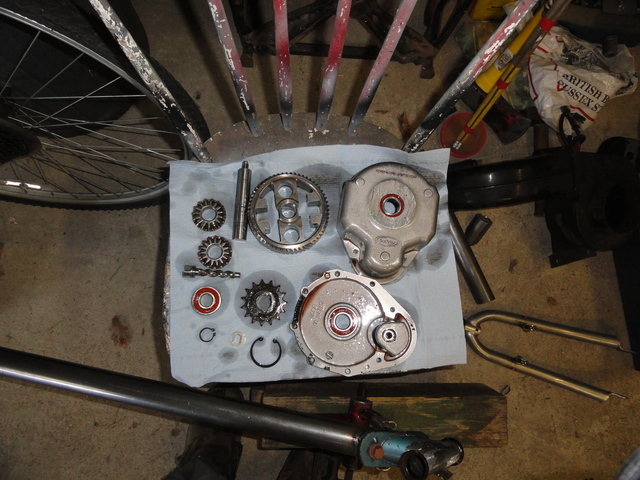

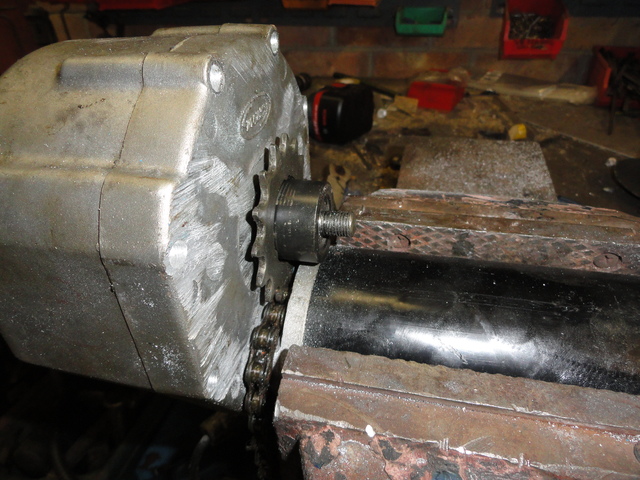

Modify a mobility scooter transaxle by locking the diff, trimming the halfshafts and welding a sprocket to the shaft (to make a generator):
 |
 |

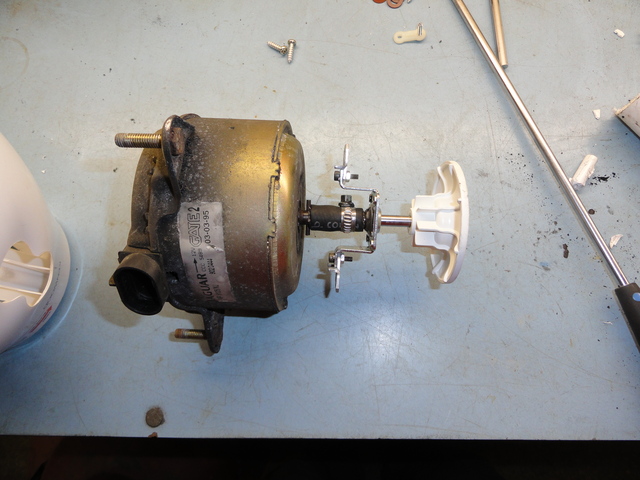

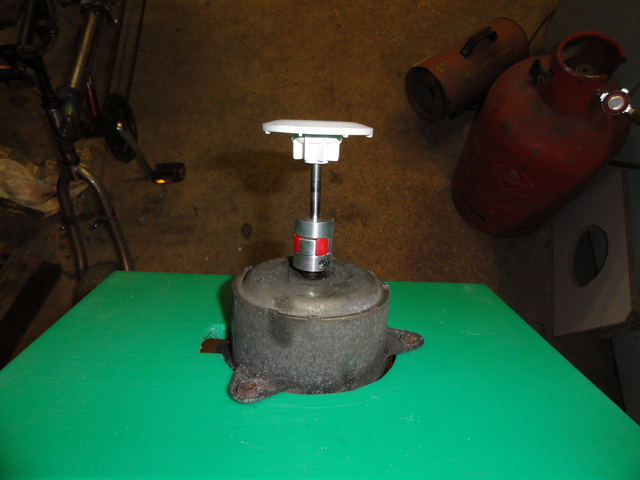

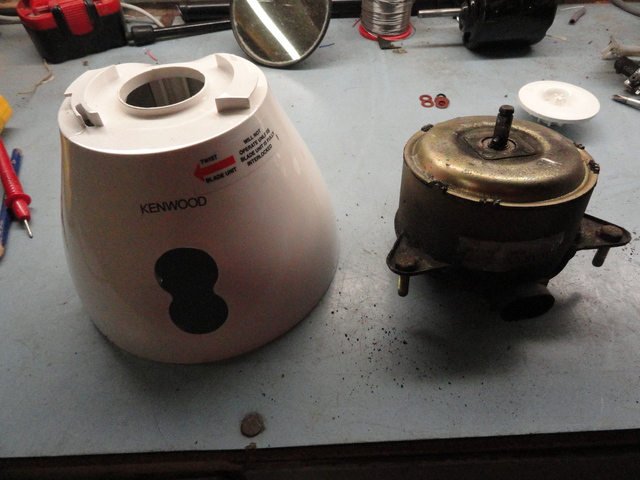

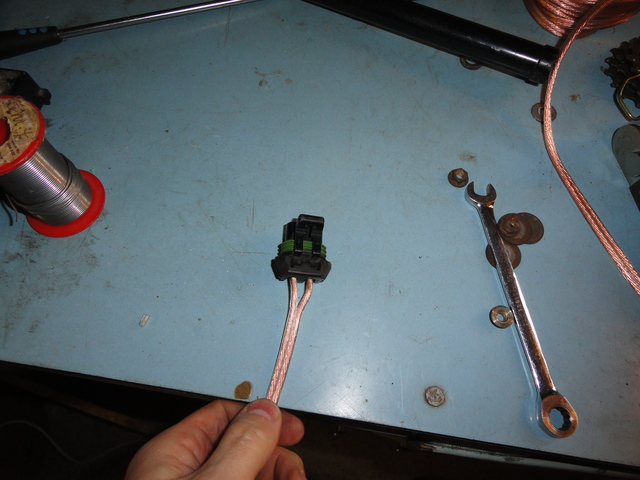

Fit a cooling fan motor from an LDV 200 series to the Kenwood Blender. This gives us a 12V Blender:
 |
 |

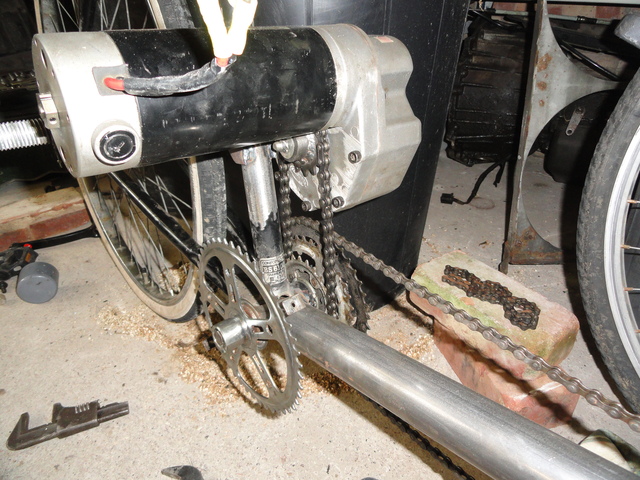

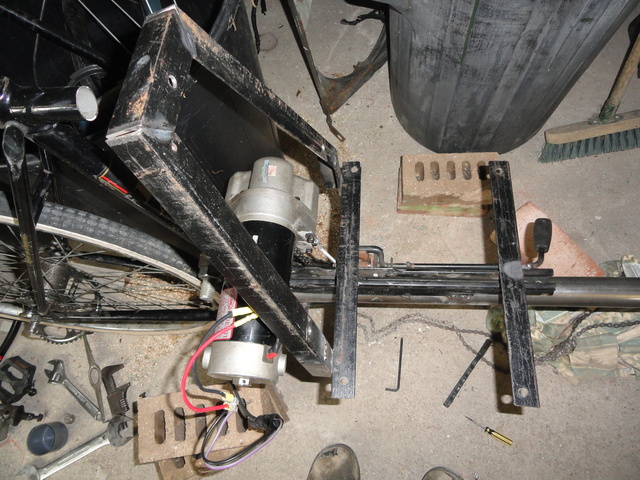

Mount up the generator:
 |

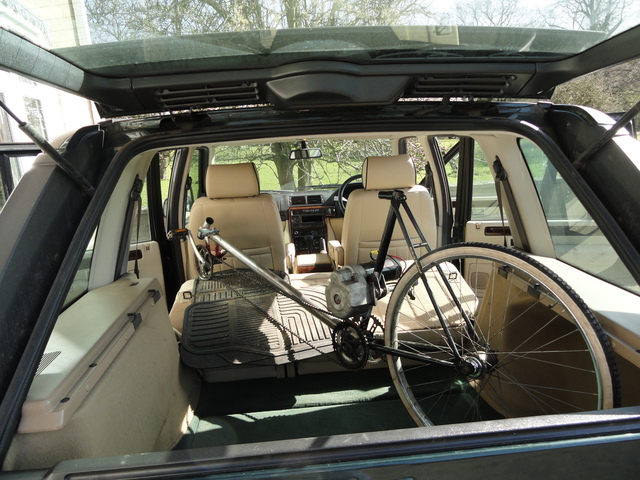

Check it fits in the Range Rover....:
 |

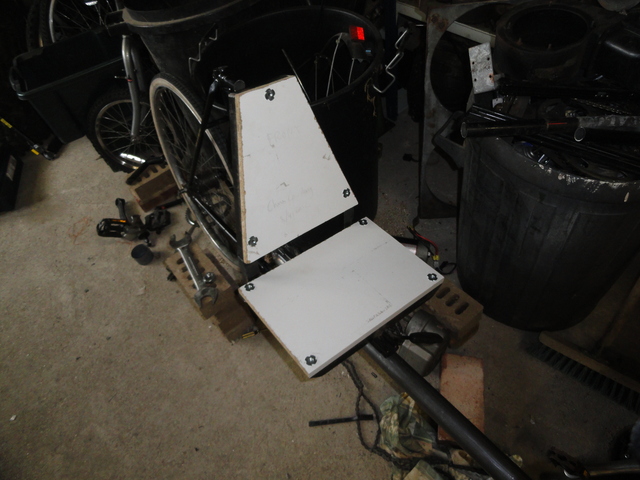

Start building up the seat:
 |
 |
 |
In fact I changed the seat in the end to have two runners.

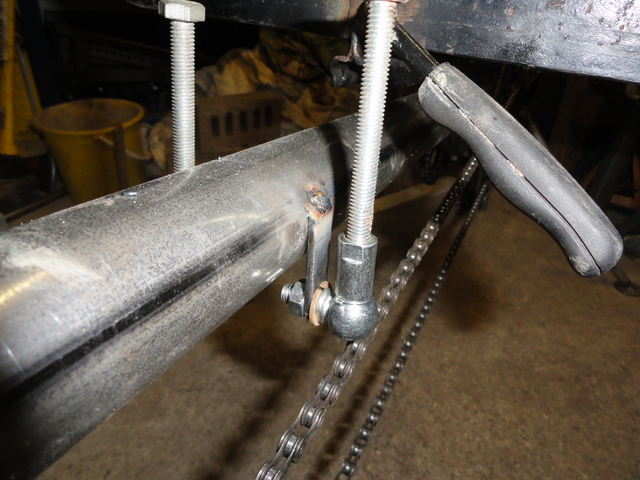

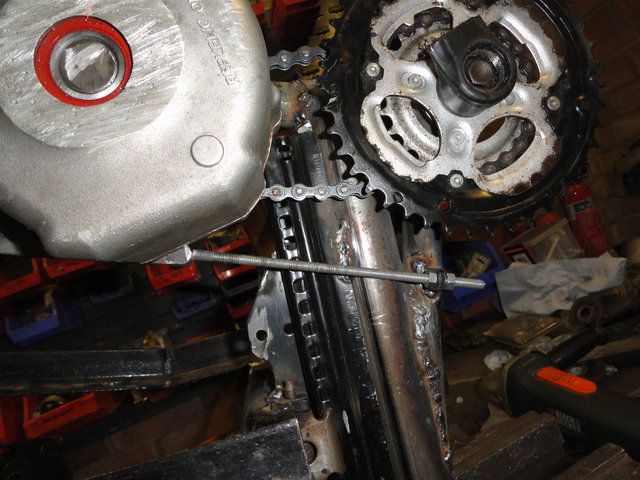

Make a tensioning device for the generator chain:
 |

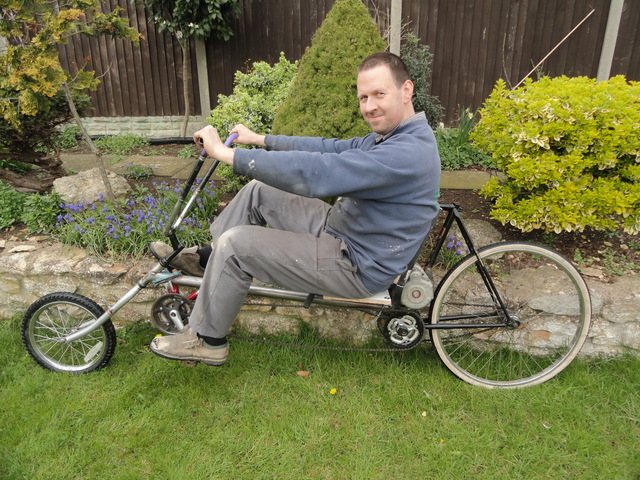

Check I can sit on it!:
 |

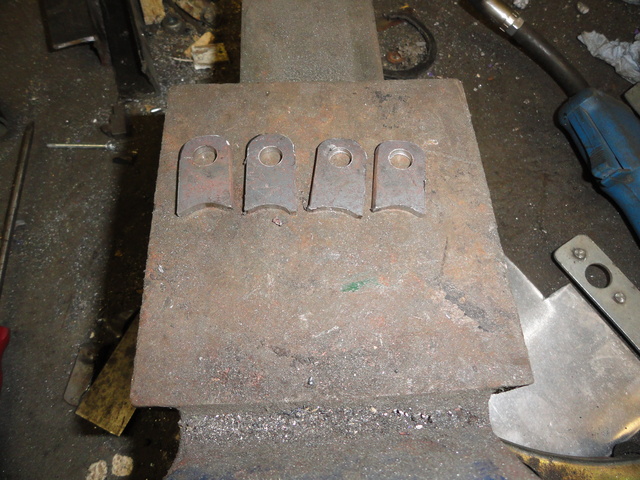

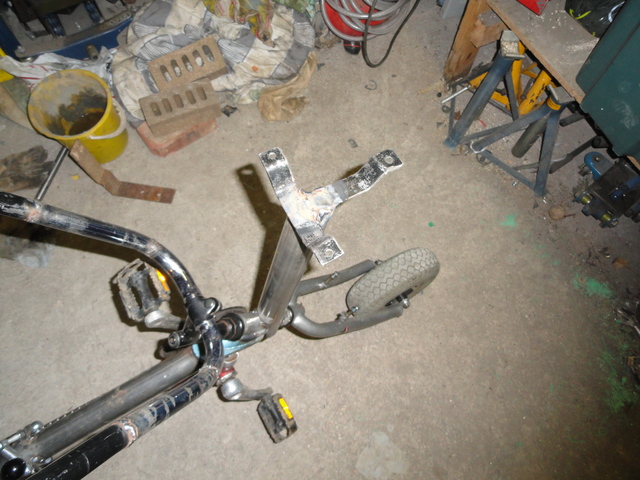

Random brackets:
 |

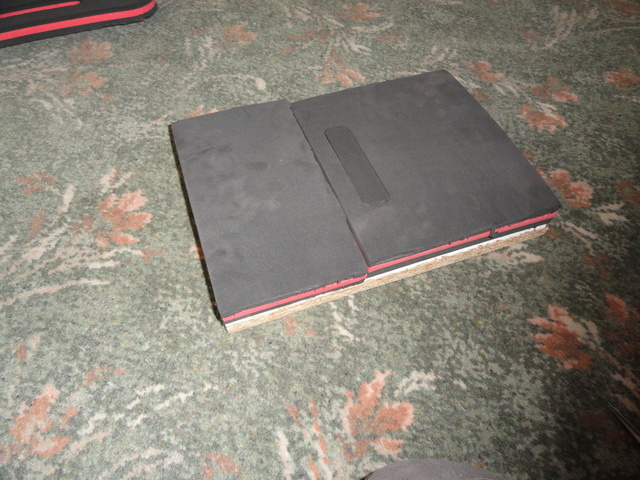

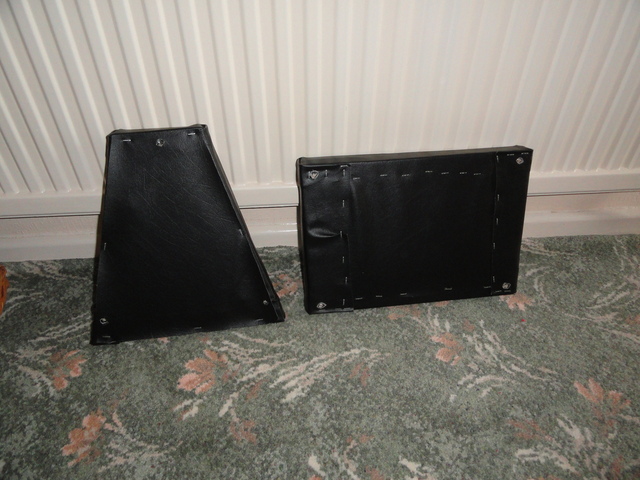

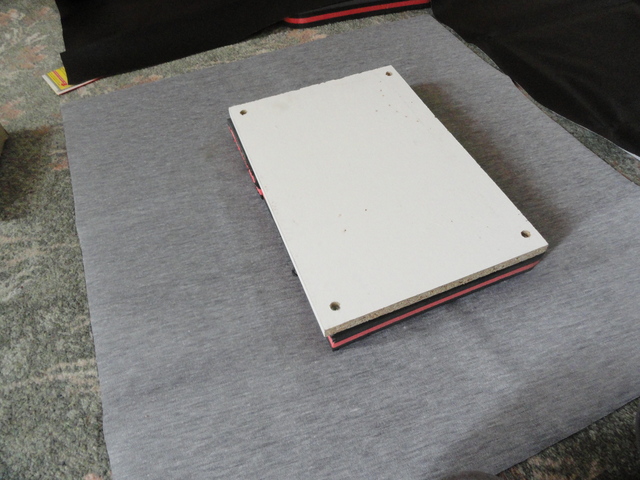

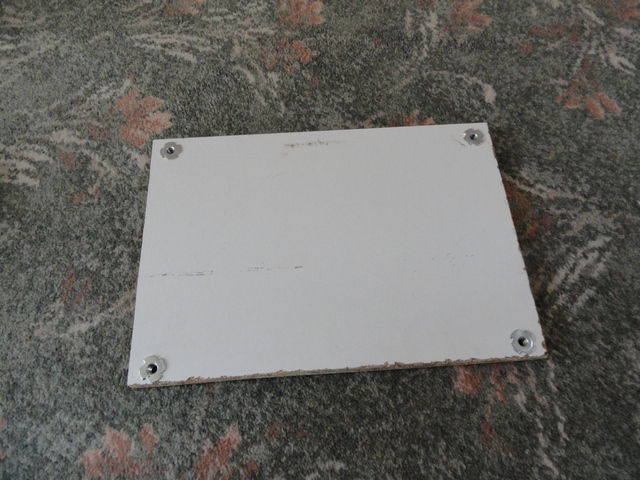

Build up a seat from chipboard, foam (kneeler) and vinyl seat covering:
 |
 |
 |
 |
Starting to get an idea of how it will look:
 |
 |

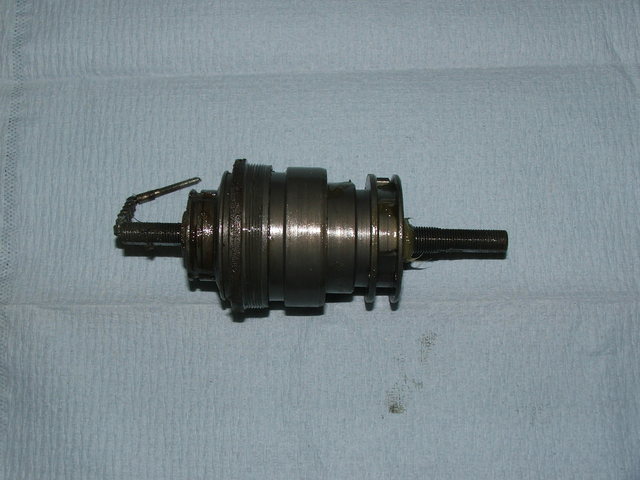

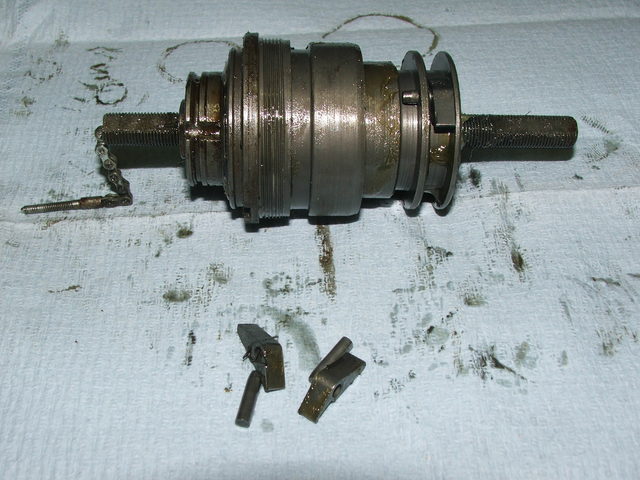

To enable smoothies to be made without moving the bike, the easiest answer seemed to me to modify the 3-speed back wheel to have 2 speeds and neutral. This turned out to be relatively straightforward, the first picture is a complete Sturmey Archer 3-speed gearset, the 2nd picture shows the parts you remove to convert 2nd gear to a neutral gear:
 |
 |

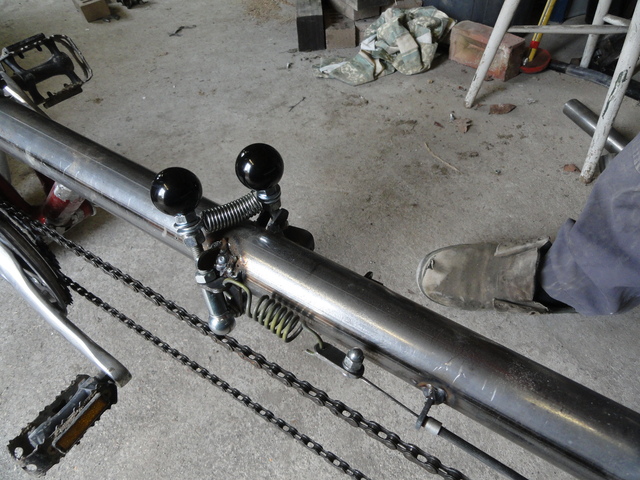

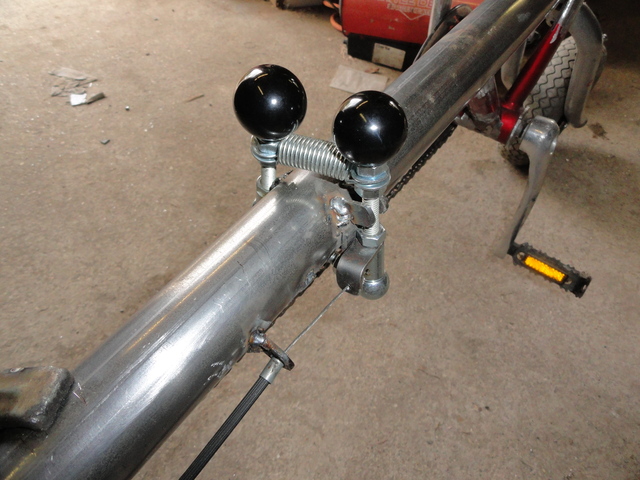

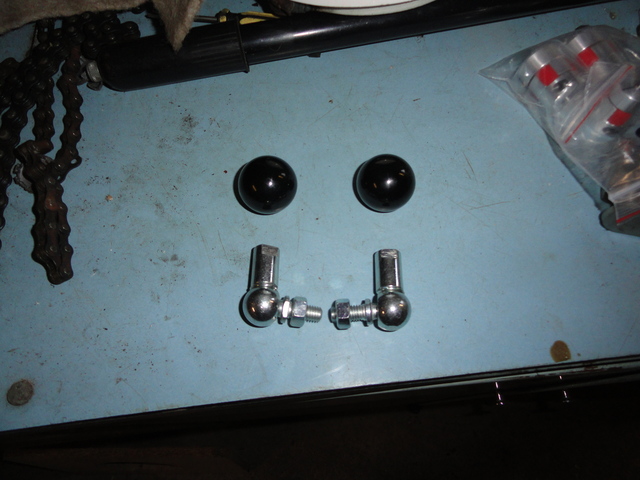

Now to start the gearsticks (one for the brake and one for the rear-wheel gears which have been modified to be 1,Neutral,3 instead of 1,2,3):
 |
 |
 |
 |

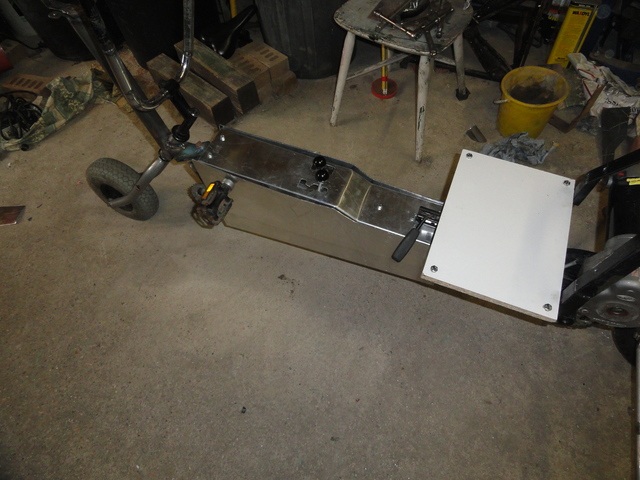

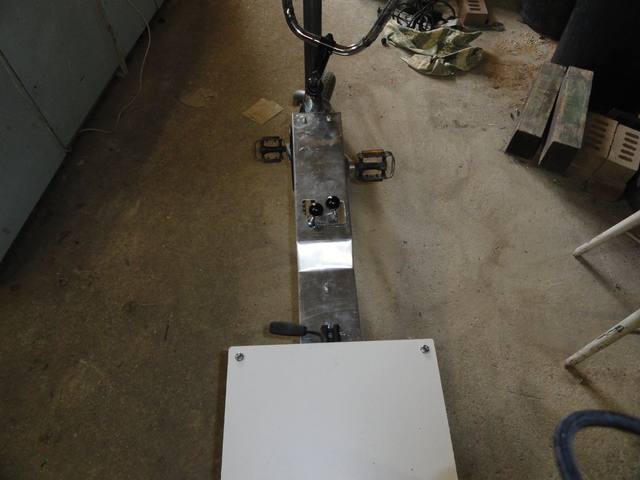

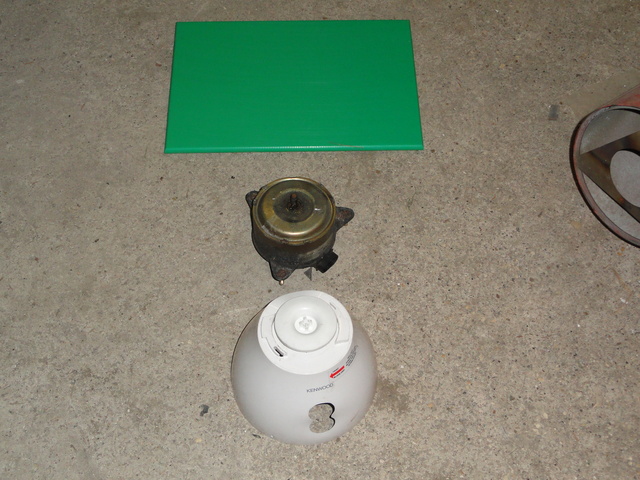

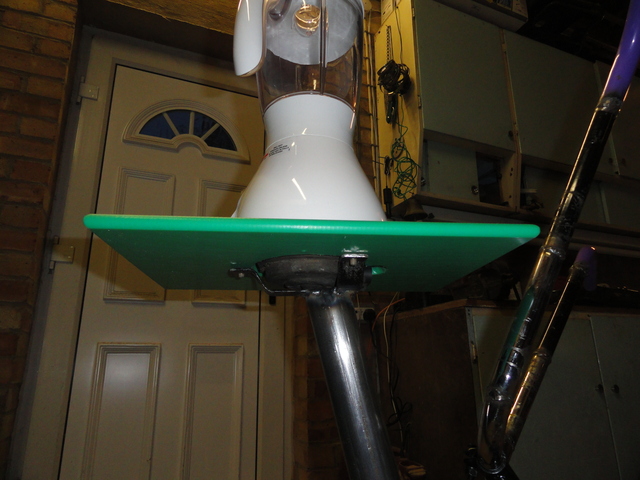

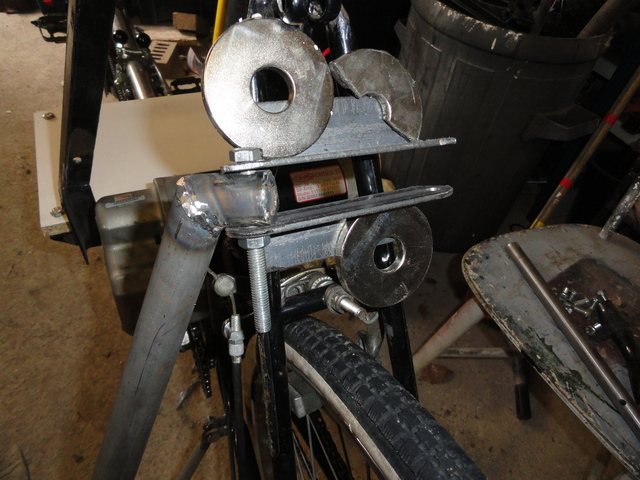

Mount up the blender now the chopping board has arrived:
 |
 |
 |
 |
 |
 |

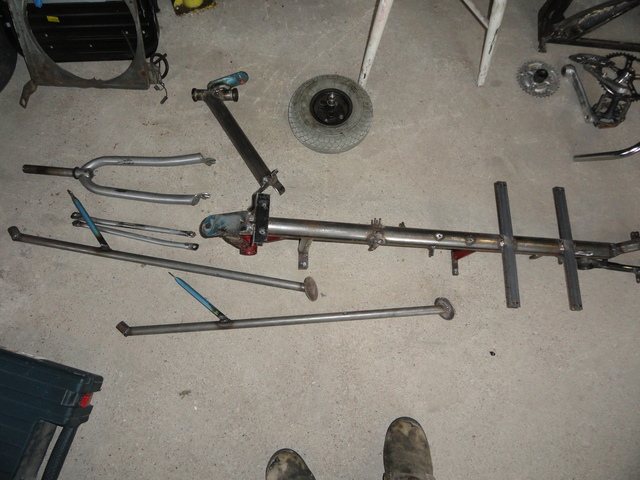

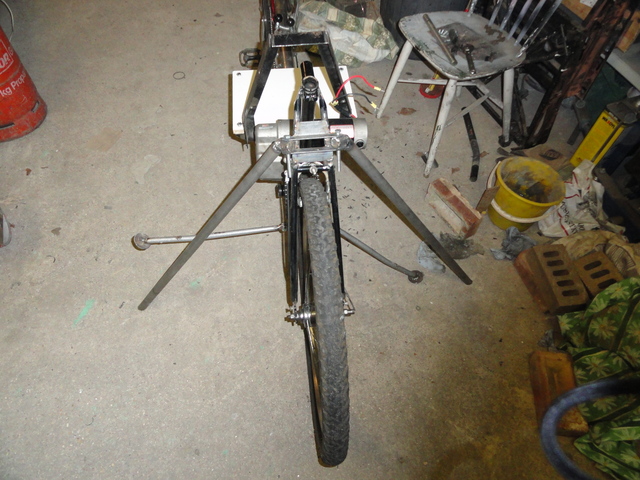

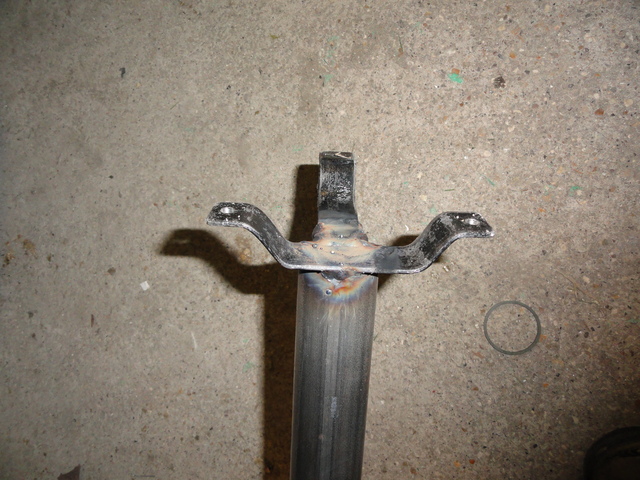

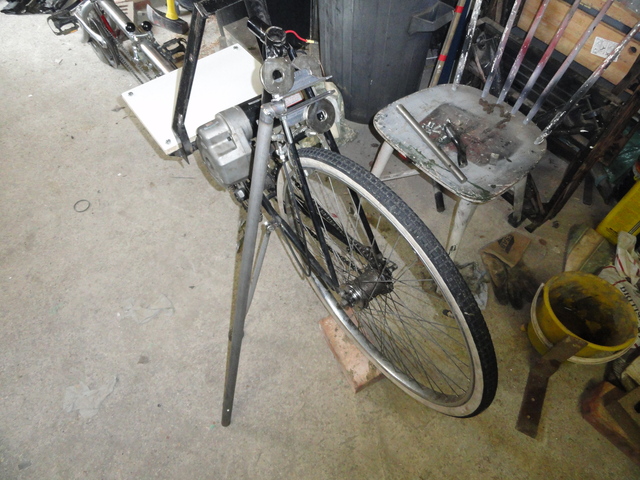

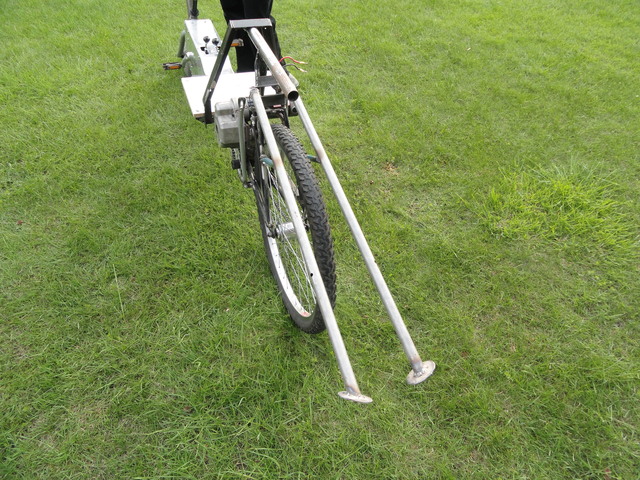

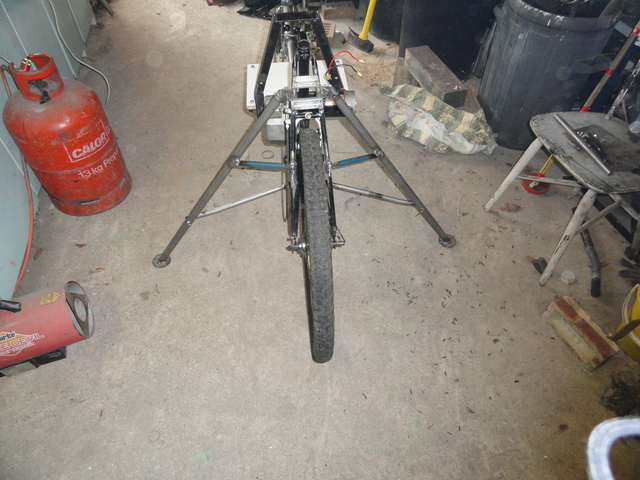

Do the stand. This was problematic (and took a few attempts) because I wanted it to be rock-solid, but still fold away:
 |
 |
 |

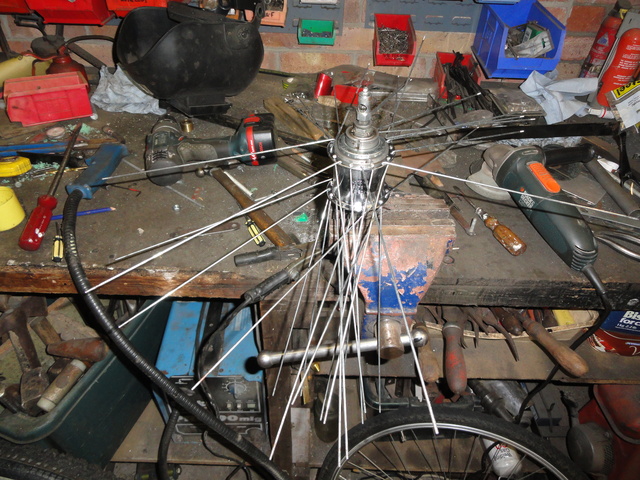

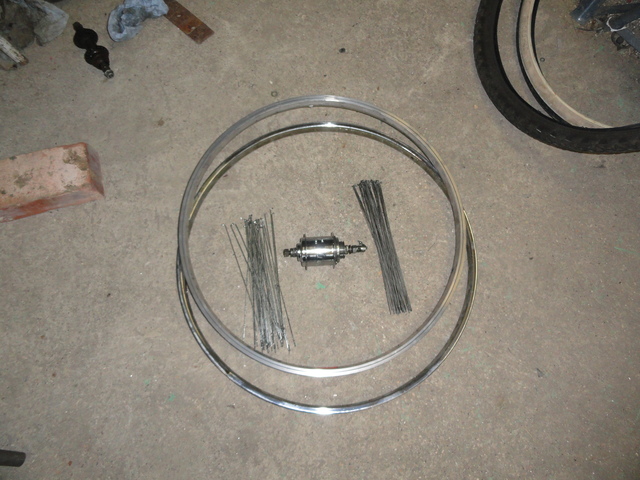

I decided that I wanted the rear wheel hub in a mountain bike rim, so I needed to mix/match two wheels:
 |
 |
 |

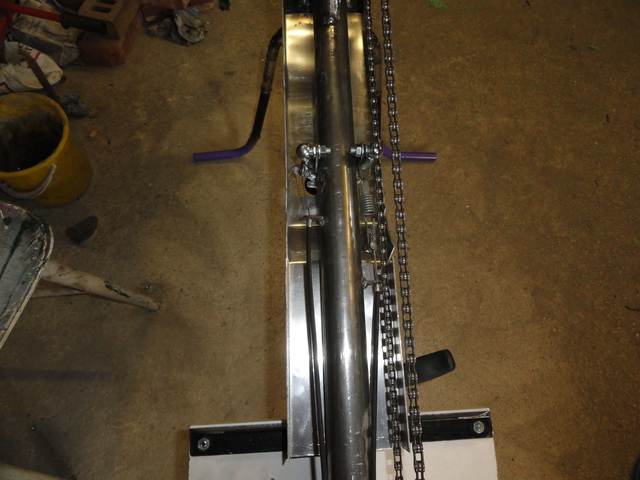

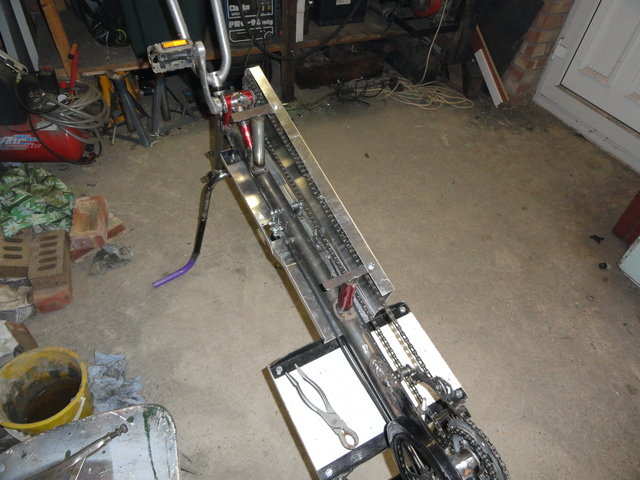

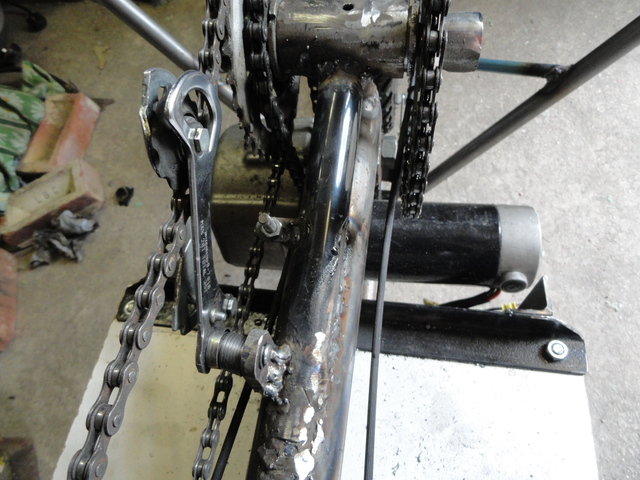

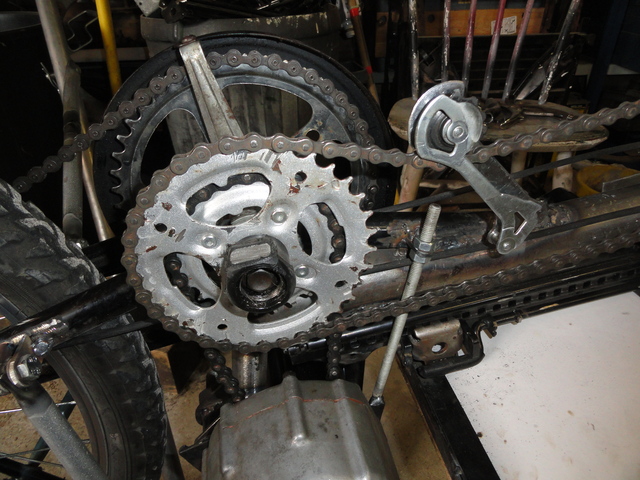

The long chain from front to rear needs a tensioner on the slack side to stop it flapping around. I modified a Derailleur mechanism:
 |
 |

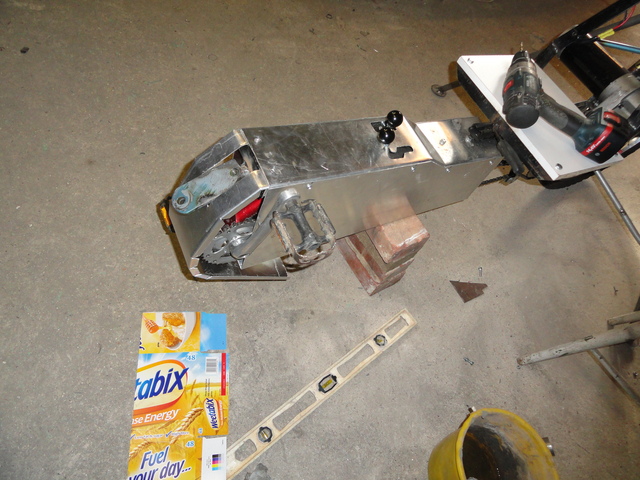

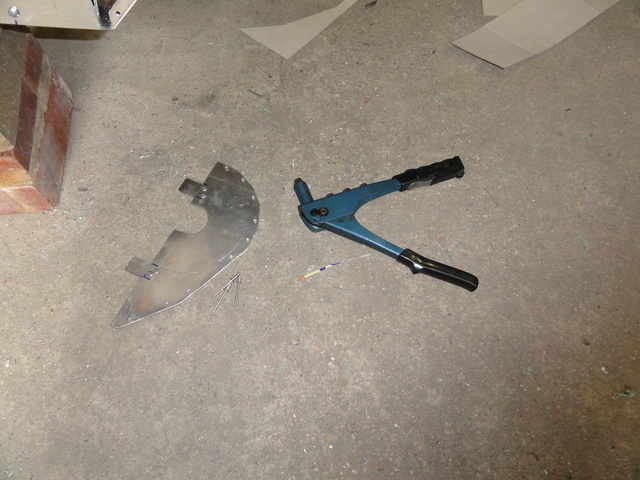

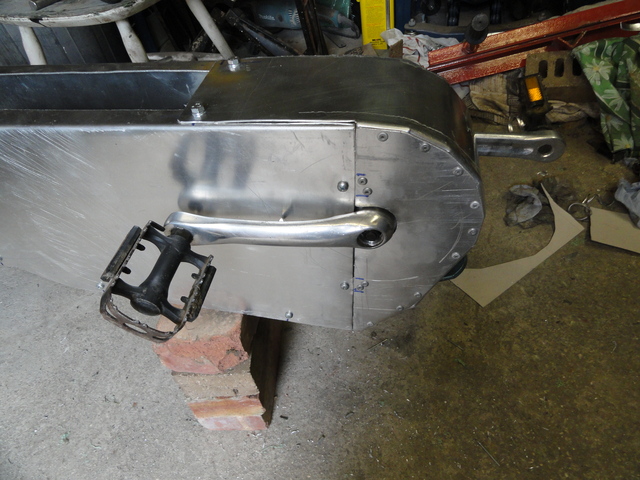

Then some guarding around the chain at the front was required:
 |
 |
 |
 |
 |
 |
 |
 |

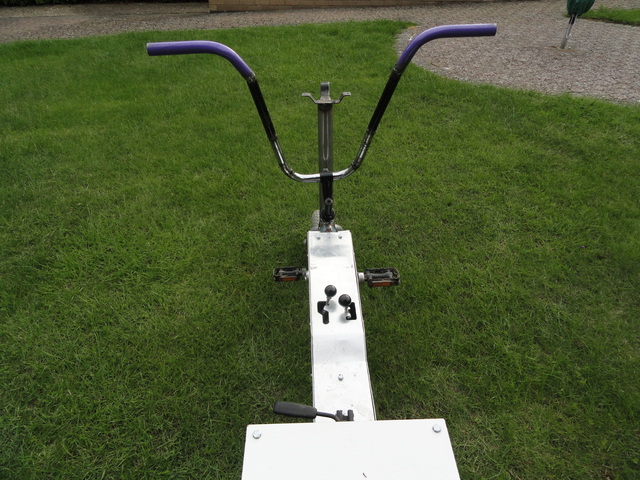

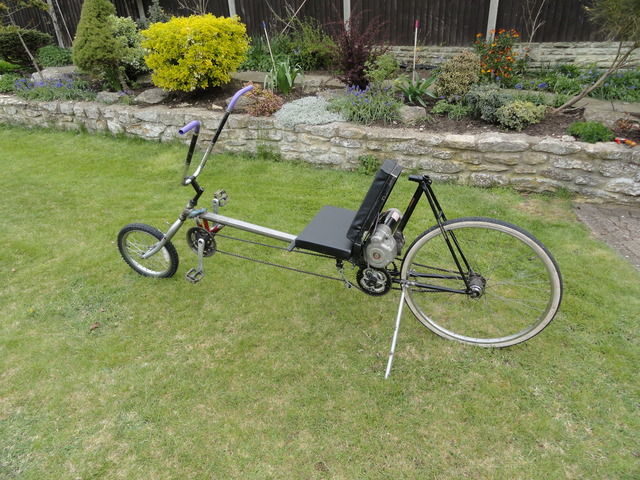

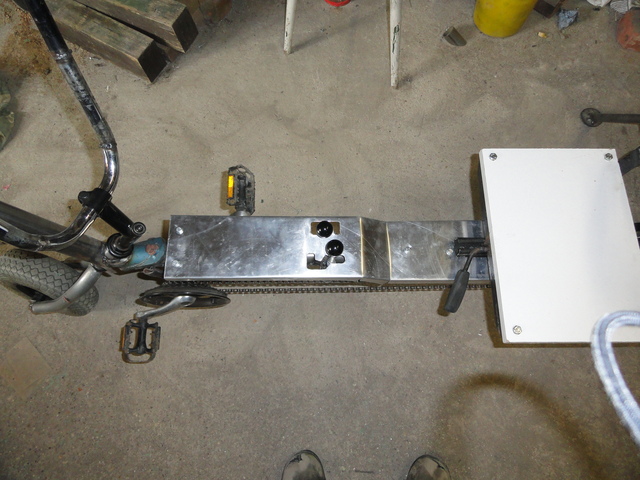

Getting close to being finished now:
 |
 |
 |

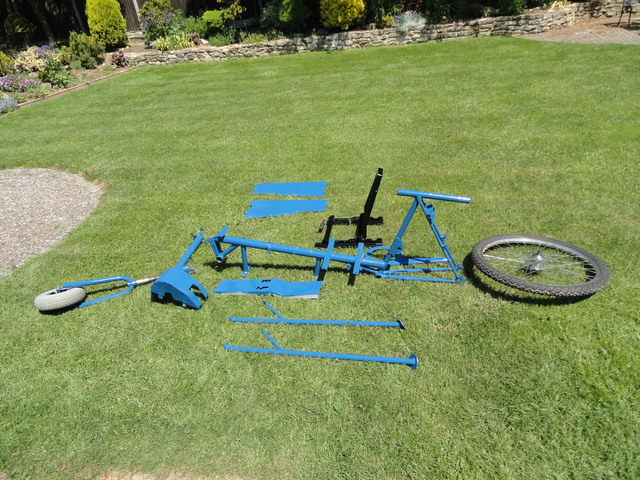

So lets take it all to bits and paint it!:
 |
 |
 |

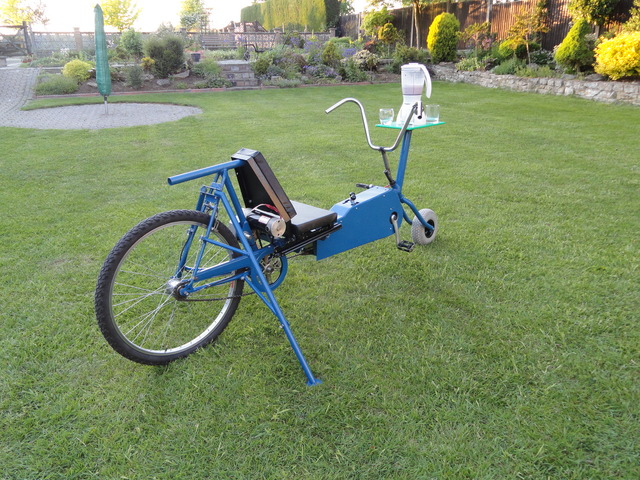

And put it back together again:
 |
 |
 |
 |
Some more YouTube
First Smoothie (or is that Lumpie!)
So now you know what's involved in building a Smoothie Bike!
