A very inconvenient rebuild!
This is the rebuild caused by getting the remote oil filter pipes back to front....
 |
Remove the flip front
 |

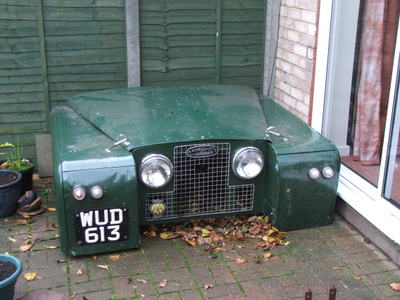

The flip front
 |
Much better access for 2 bolts & a connector
 |
 |

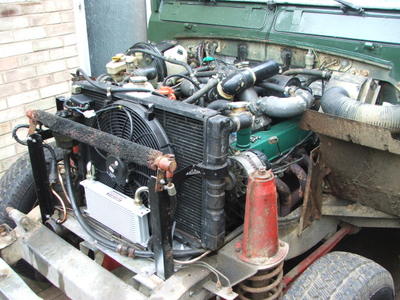

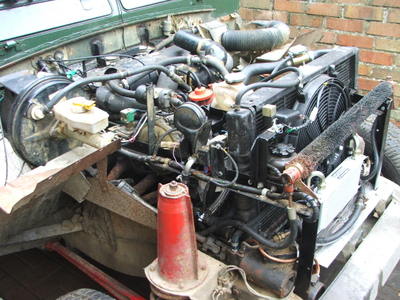

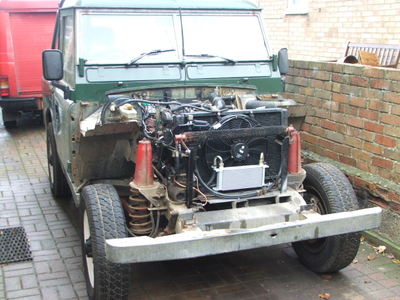

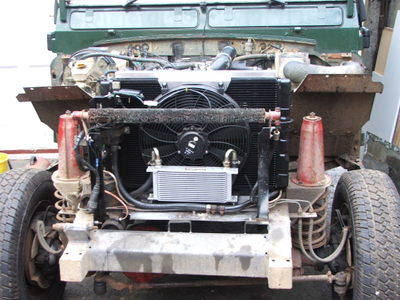

Remove the radiator etc.
 |
 |
 |
And then whip the engine out
 |

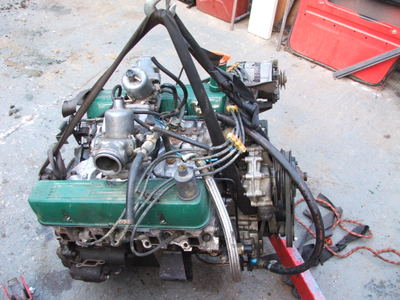

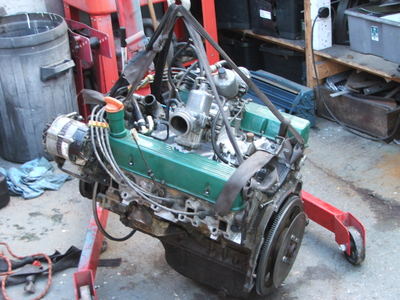

The engine
 |
 |

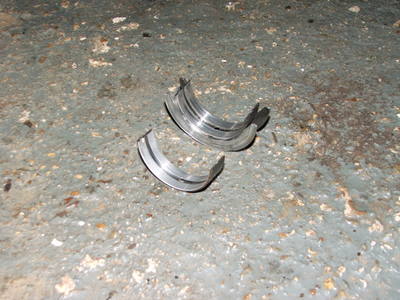

The offending main bearing shell and big end shell
 |

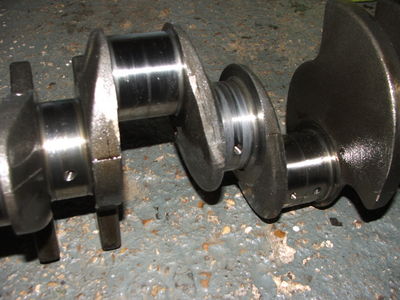

The scored crank
 |

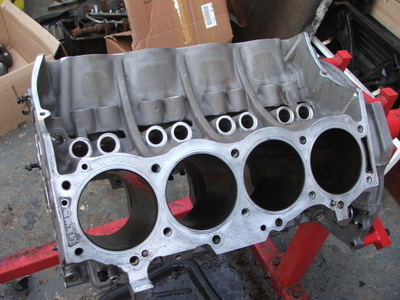

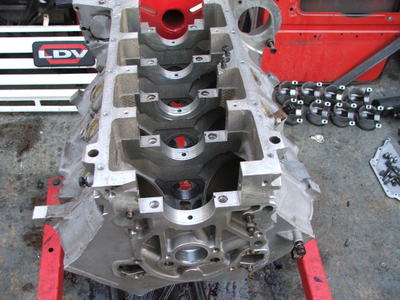

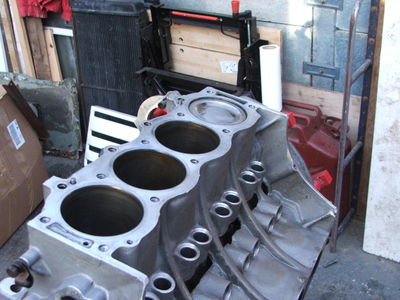

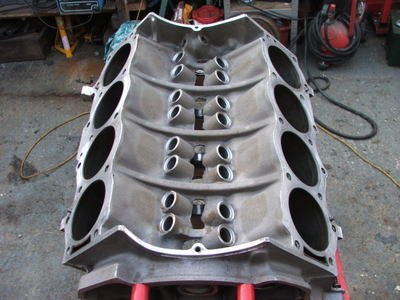

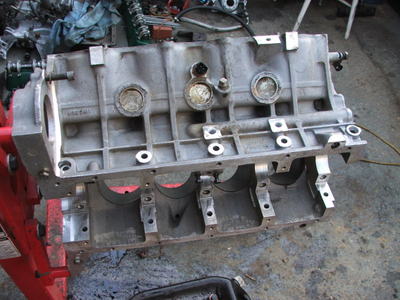

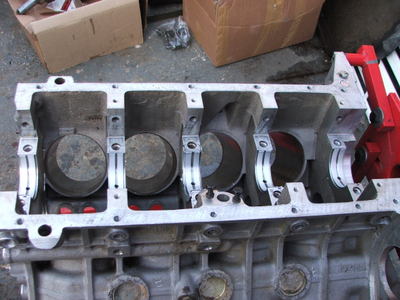

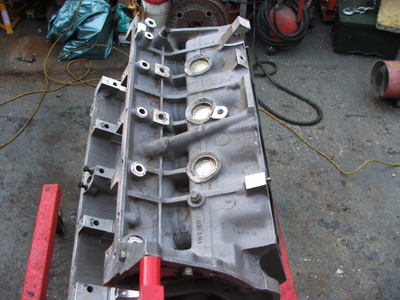

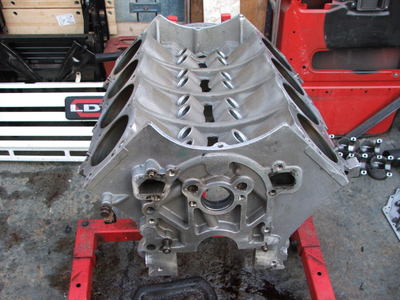

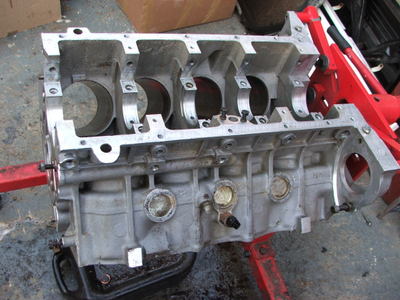

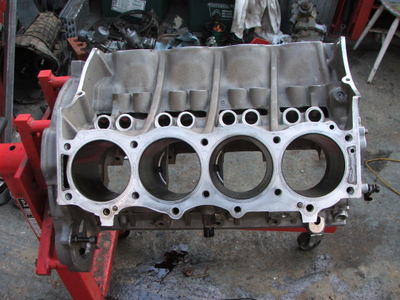

The block cleaned & ready for rebuild
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

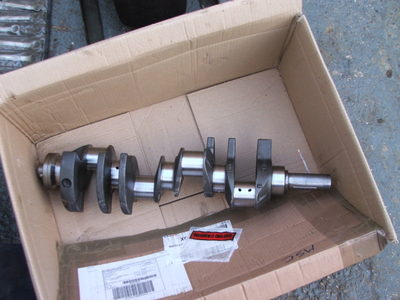

Freshly ground crank - 10thou undersize now
 |

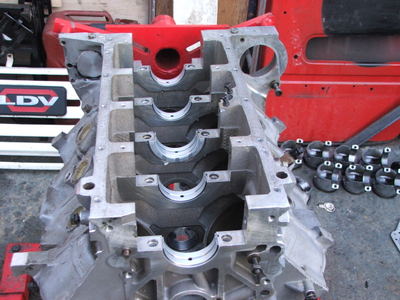

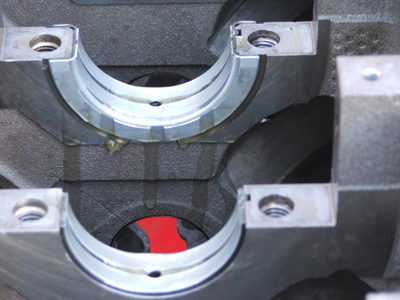

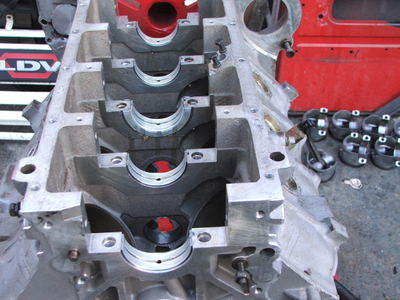

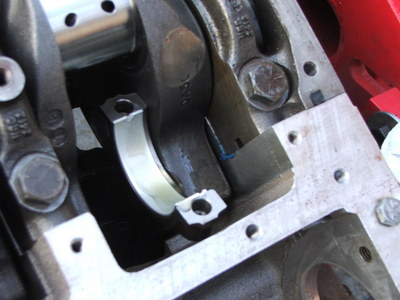

Main bearing shells (upper half) in place
 |
 |
 |
Lubricated ready for the crankshaft
 |

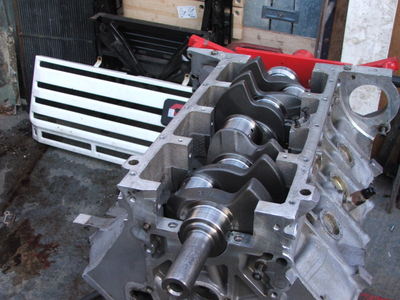

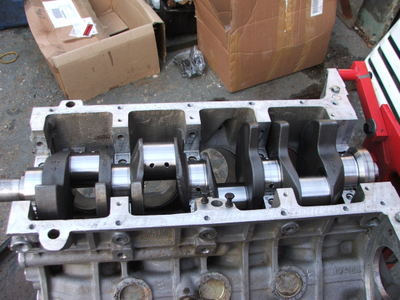

Crankshaft rested in place
 |
 |
 |

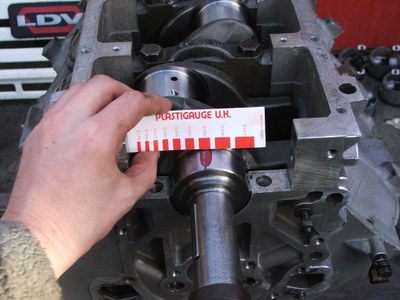

Check bearing clearances with plastigauge - see the thin slither of stuff on the closest main bearing surface
 |
Fit the main bearing cap (including cross bolts), then remove it and see how wide the plastigauge has been squidged too. That gives you the bearing clearance
 |

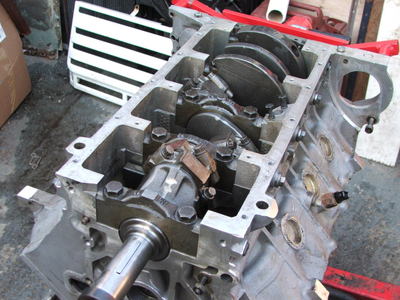

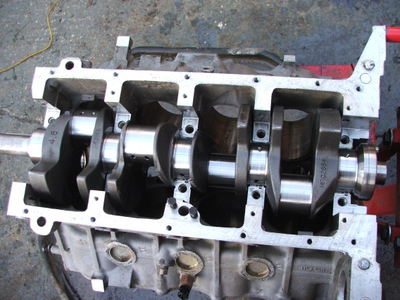

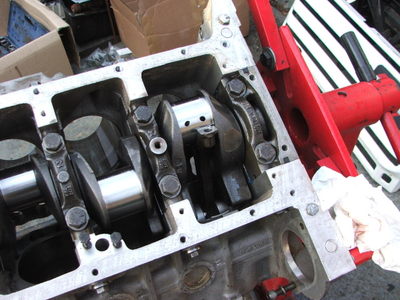

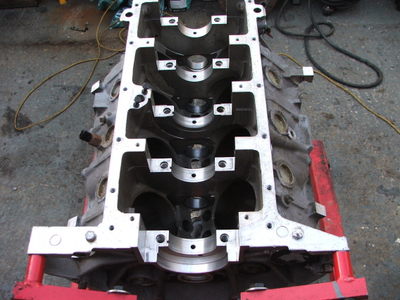

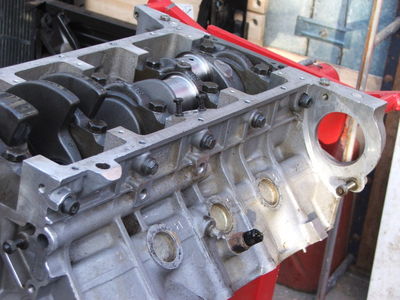

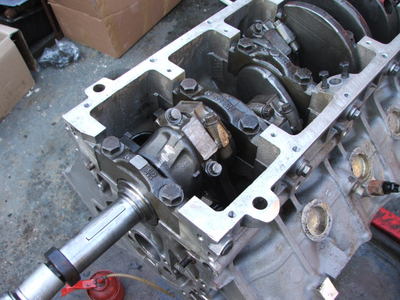

Fit the main bearing caps & cross bolts
 |

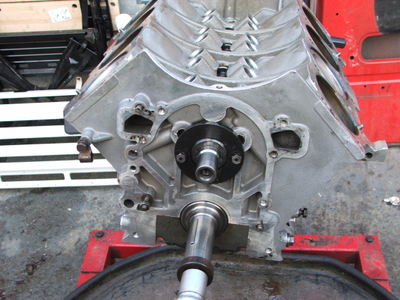

Rear of crankshaft
 |

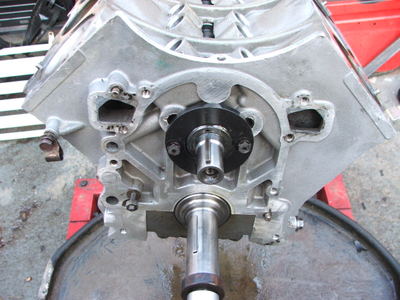

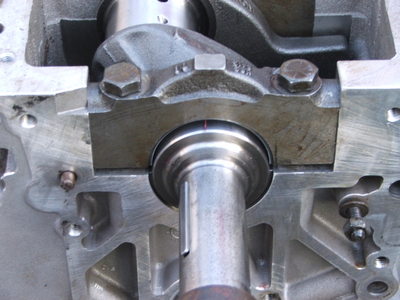

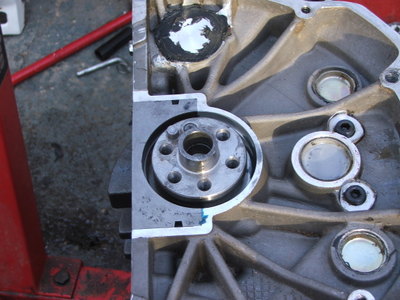

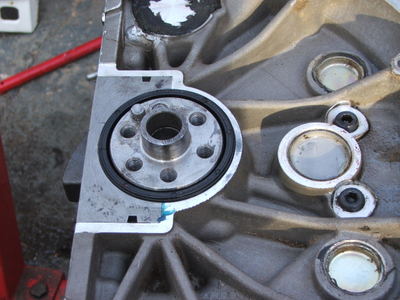

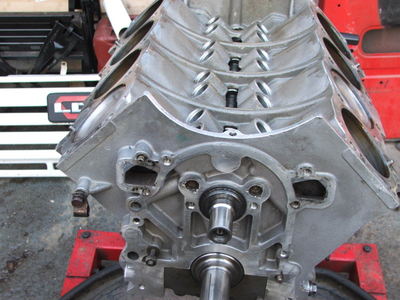

Rear crank oil seal in place
 |
 |
A piston rested in the bore (no. 8)
 |

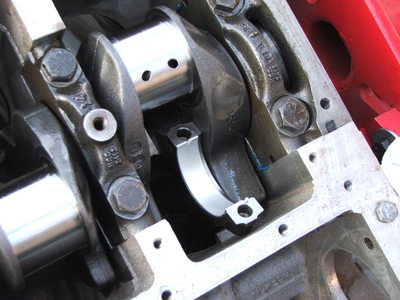

Big end bearing shell in place
 |
Lubricate it
 |
 |
and place it on the crankshaft
 |

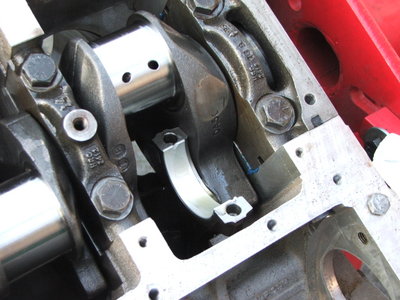

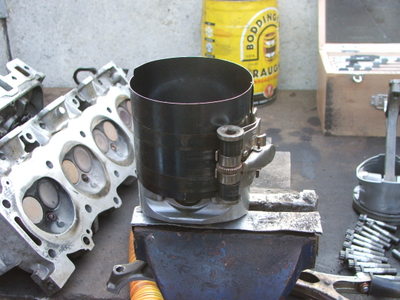

And fit the big end cap (not shown). Another piston with the ring compressor in place
 |

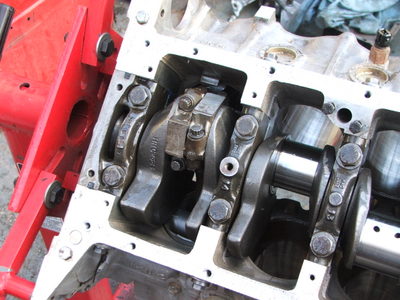

Big ends 8 & 7 fitted
 |

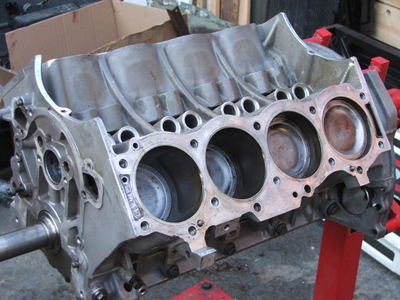

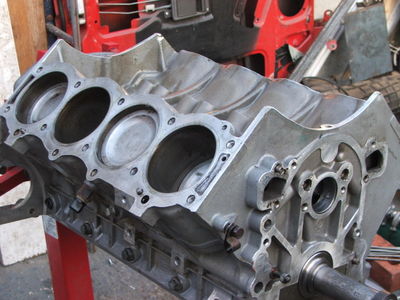

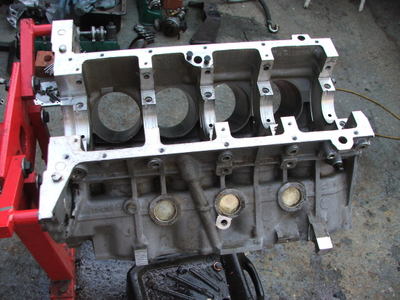

The remainder of the pistons
 |
 |
And the big ends
 |
 |

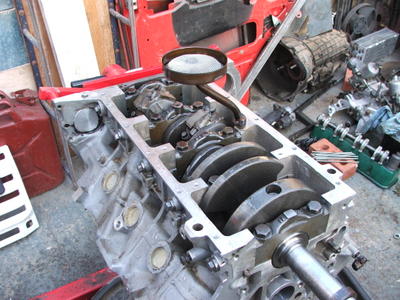

Oil pickup
 |
Camshaft
 |
and camshaft retaining plate (p38 engines only)
 |
 |

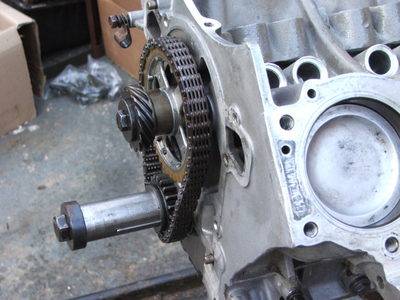

timing chain
 |
Distributor (and oil pump) drive gear and spacer
 |

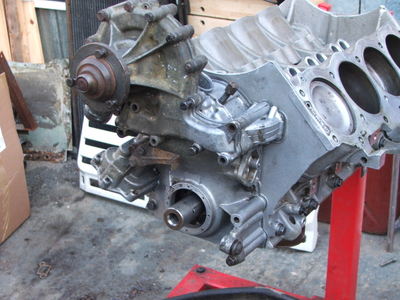

Timing cover back on
 |
Splash guard
 |

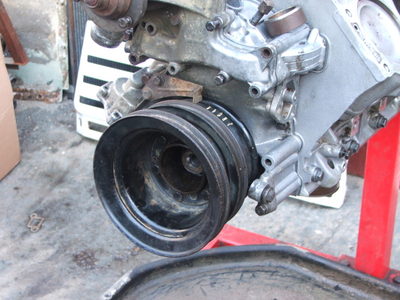

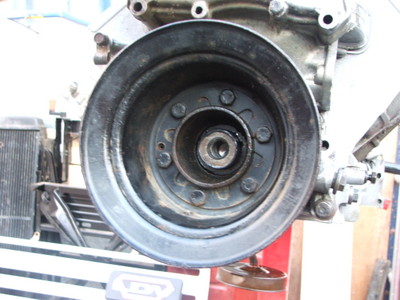

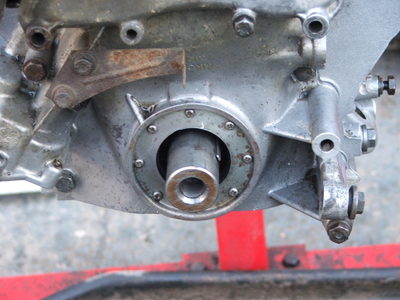

Crankshaft pulley
 |
 |

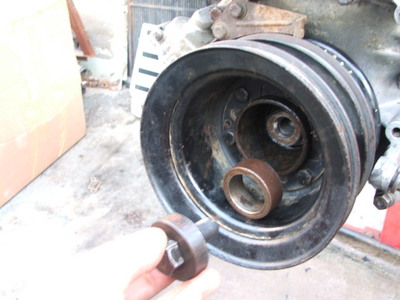

Spacer as this is a long-nose crankshaft with an old style timing cover
 |

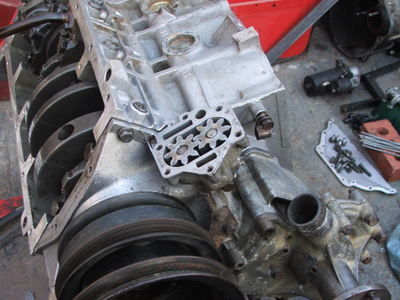

Oil pump gears
 |

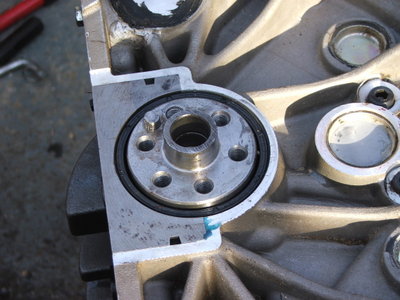

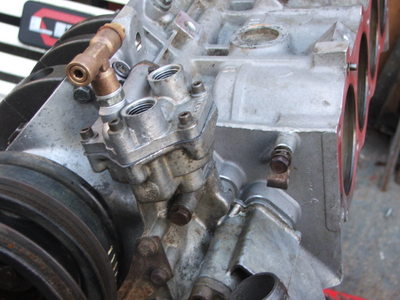

Oil pump cover (remote filter type)
 |
 |
 |

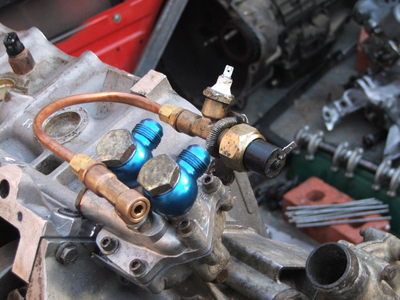

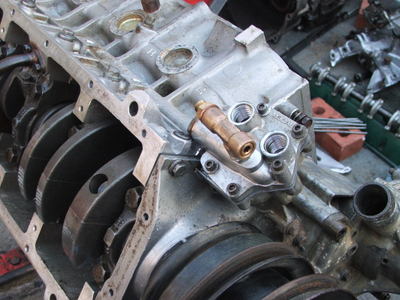

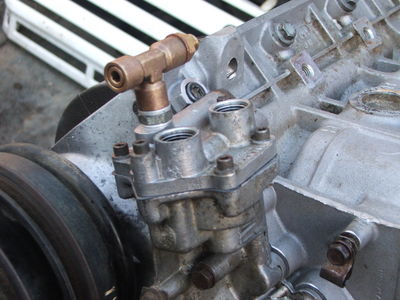

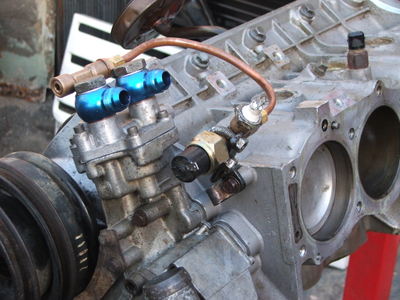

Pipes to the remote filter & cooler and a CJC special remote oil pressure sensor. I wrote the direction of flow on the cover this time!!
 |
 |

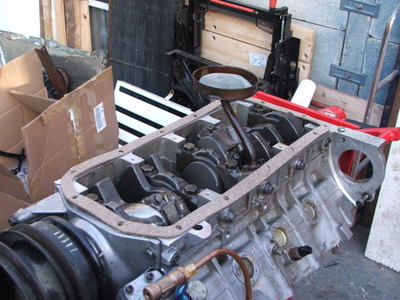

Sump gasket on
 |
Sump
 |
 |

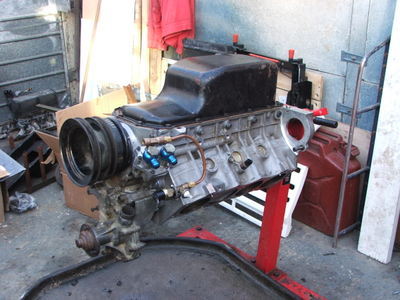

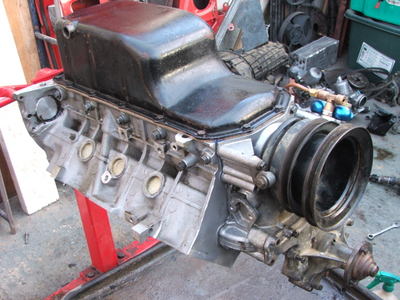

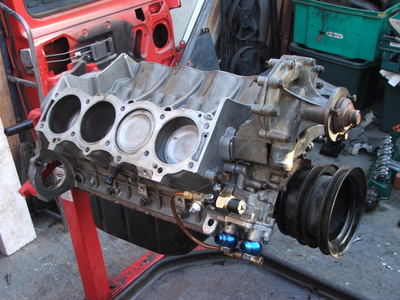

Bottom end all finished
 |
 |

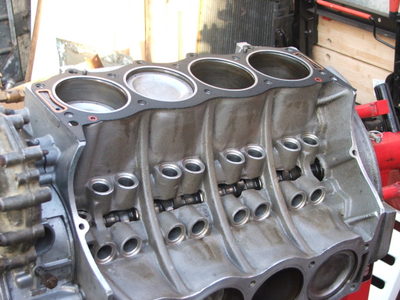

Headgasket (composite type)
 |
Head in place (new stretch type bolts used)
 |

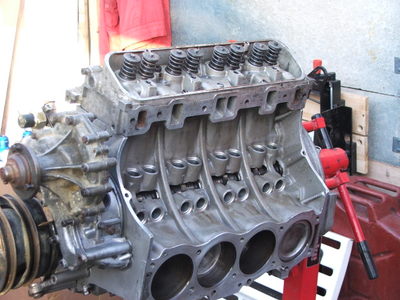

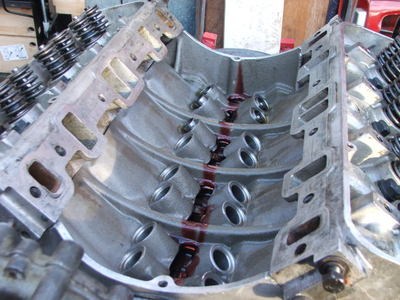

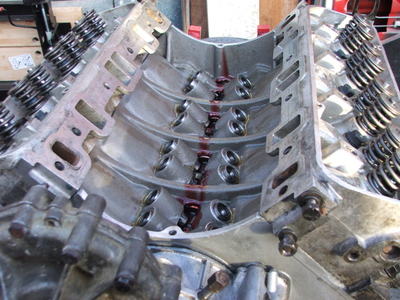

Both heads on and the camshaft lubricated with 'cam lube'. I reckon chain oil is as good
 |
Hydraulic tappets in
 |

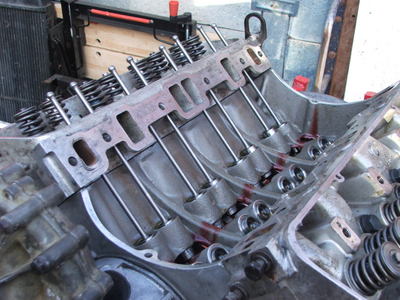

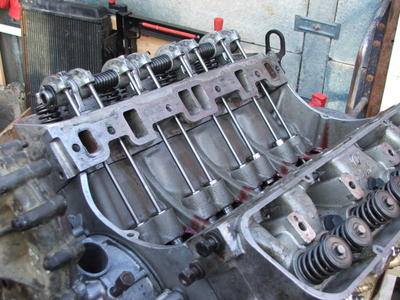

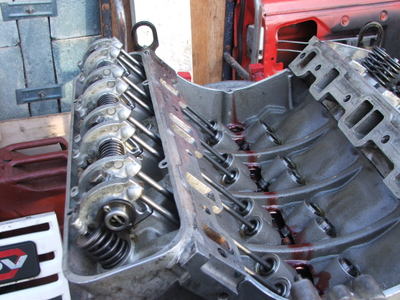

Pushrods on one side
 |

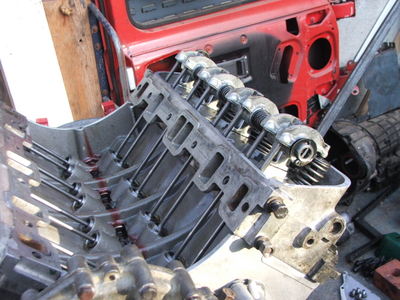

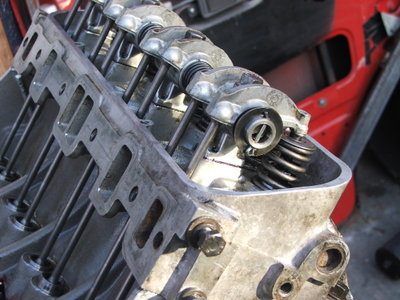

Rocker shaft. This is when one should check hydraulic tappet preload
 |
 |
 |

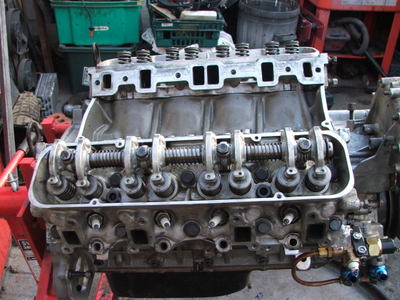

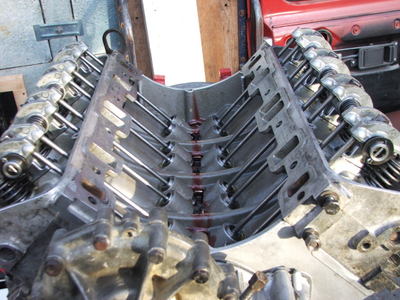

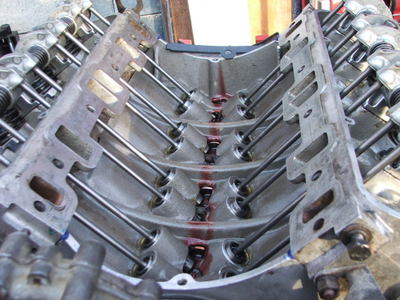

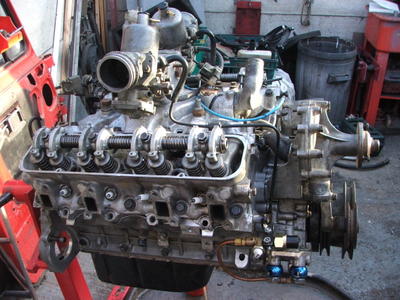

Valve gear all in
 |
 |
 |
 |
 |

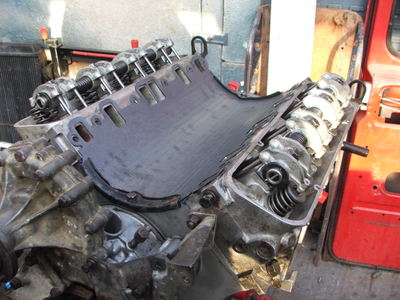

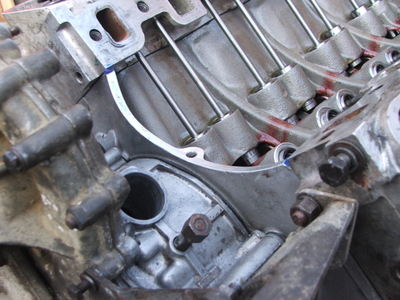

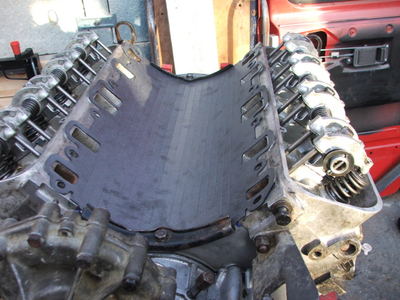

Valley gasket
 |
 |

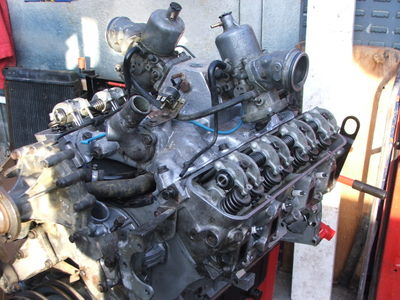

Inlet manifold. It's looking more like an engine now!
 |
 |
 |

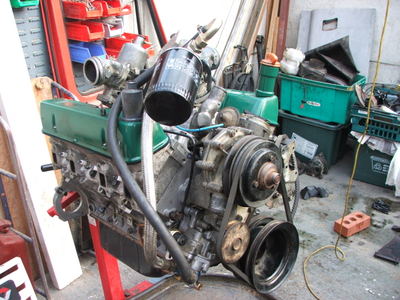

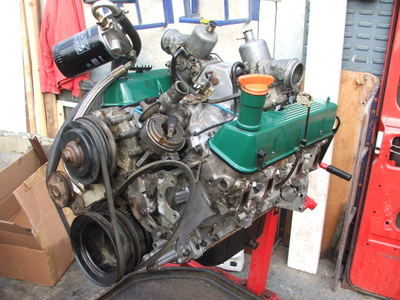

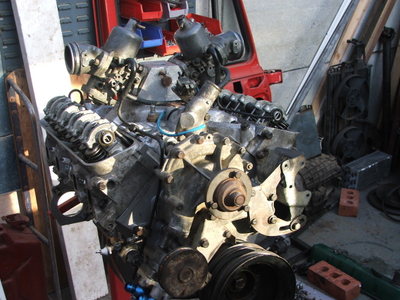

Belts, pulleys, distributor, rocker covers & remote oil filter
 |
 |

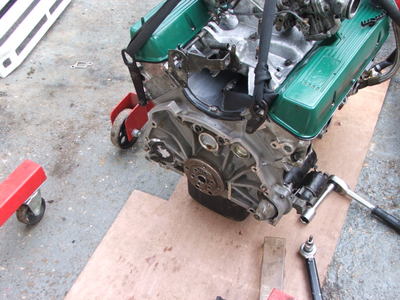

Starter motor
 |

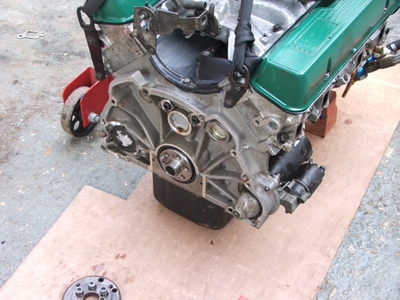

Crankshaft adapter
 |

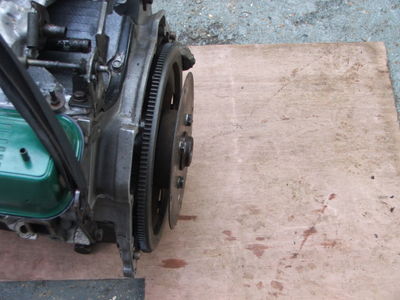

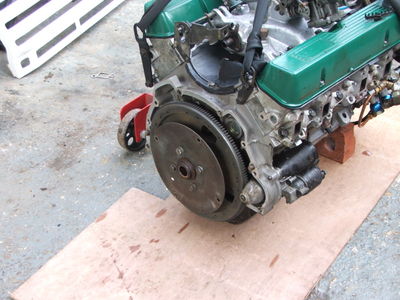

Ring gear & flex plate
 |
 |

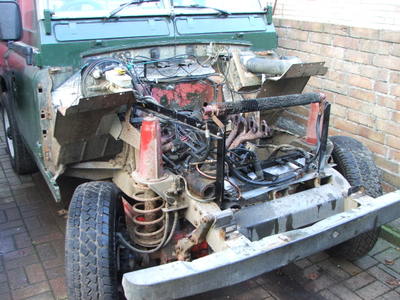

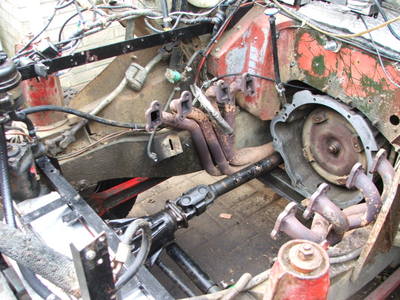

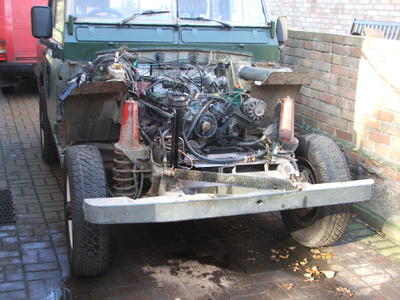

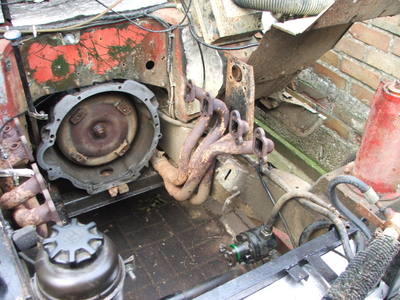

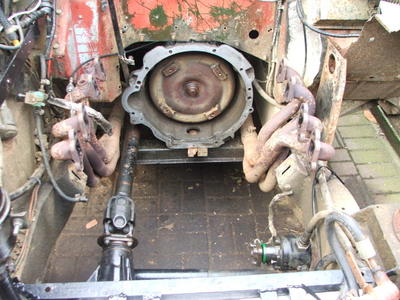

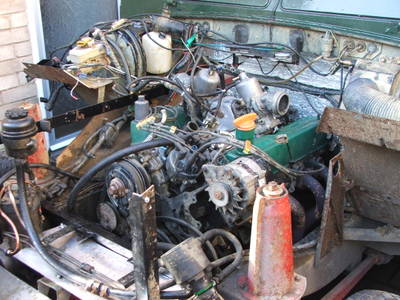

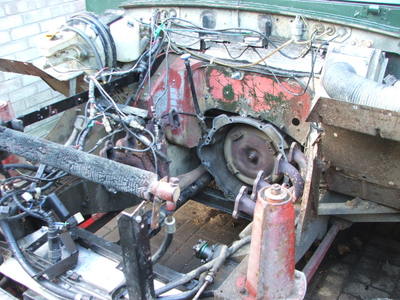

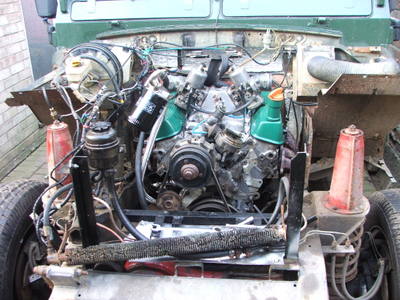

The waiting engine bay. Notice the PAS pump still connected up. No need to drain the PAS system doing it this way
 |
 |
 |

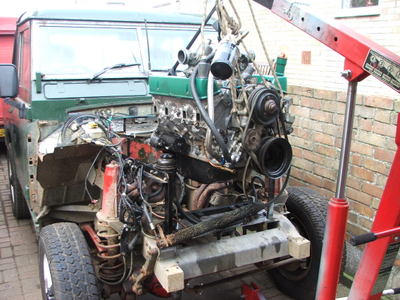

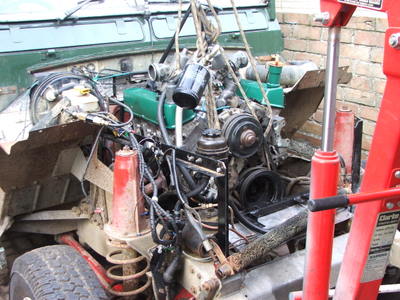

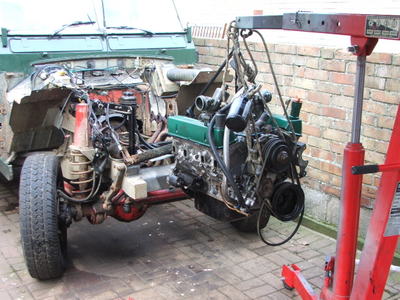

Popping the engine back in
 |
 |
 |
 |

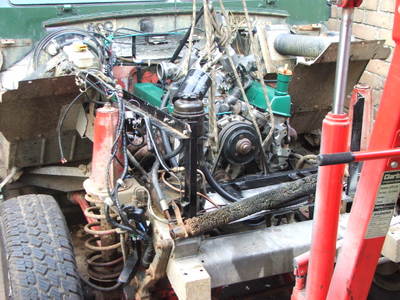

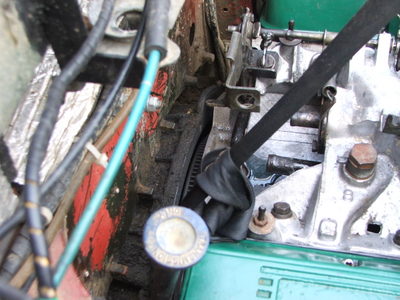

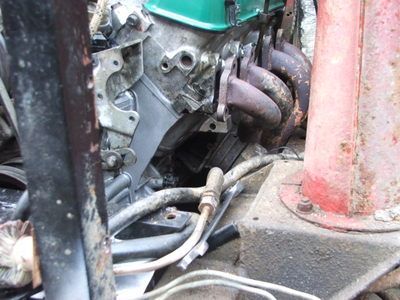

Magic - the engine & gearbox are perfectly aligned!. Stick in some bolts ASAP
 |

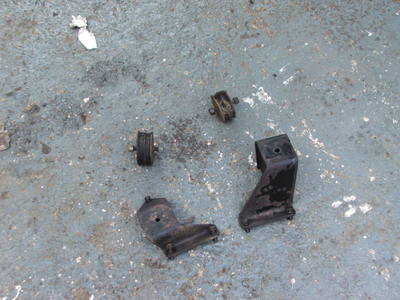

Engine mounts
 |
It's easier to fit the mounts after the engine is connected to the gearbox
 |
 |
 |
 |

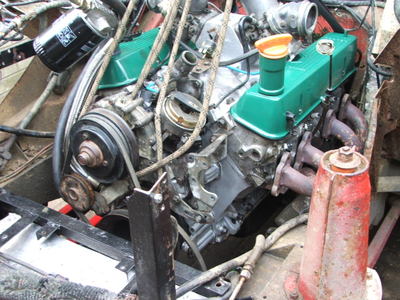

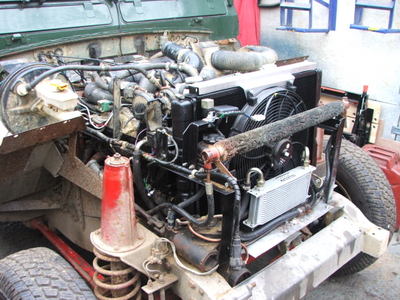

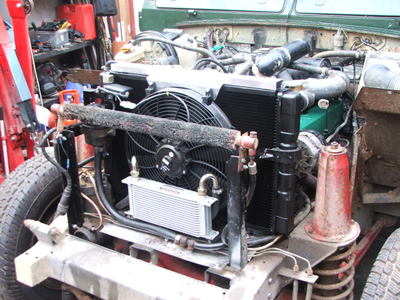

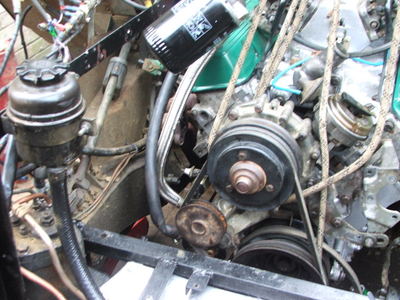

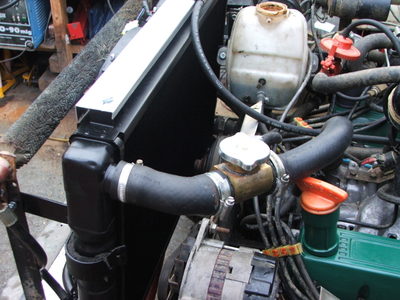

Stick the ancillaries back on, and the radiator etc. Triple check the oil cooler plumbing this time.
 |
 |
 |
 |
All that remains is to remove the distributor, prime the oil pump, fill the radiator & give it a try!
